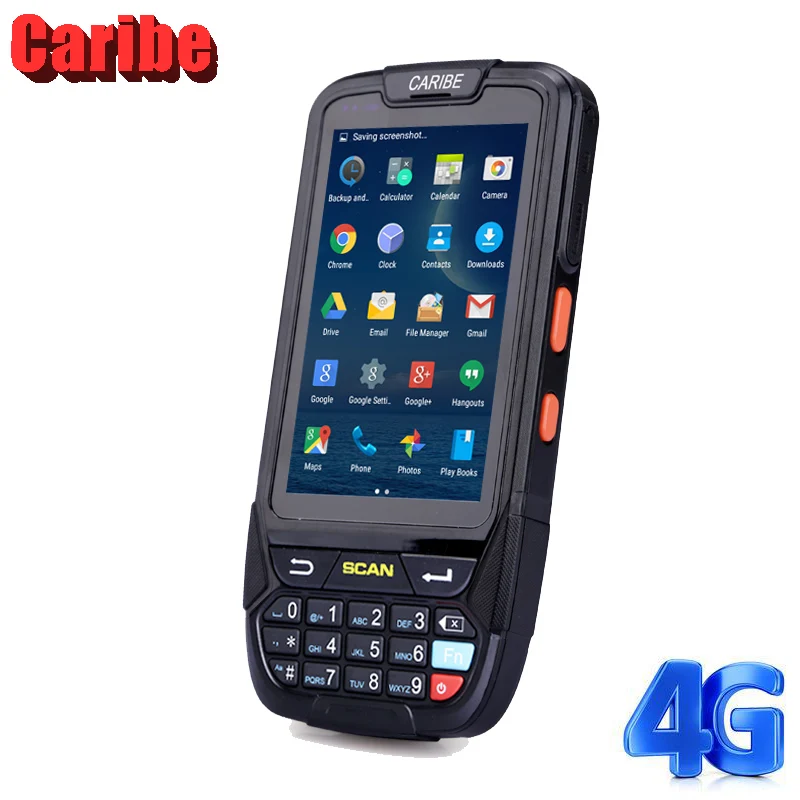

Caribe PL-40L Smartphone Style industrial pda android bluetooth 1d barcode scanner


The Best Seller Smartphone Product provide Big Stock Discount Caribe PL-40L Smartphone Style industrial pda android bluetooth 1d barcode scanner. Now USD ~ USD /piece. Dont waste your time. Buy Now only in shenzhenCARIBE pda Store Trusted Seller Store!

  • Attention:convenient charging with optional charge cradle.buy cradle pls visit this link.
  • The standard configuration:android 5.1+2G RAM+16G ROM+Wifi+BT4.1+GPS+1D+FDD-TLE 4G/WCDMA/GSM +phone+8M pixel Camera barcode scanner (Support google playe store)
  • Standard Accessories:battery1pcs ,usb data cable1pcs ,charger1pcs,screen protector1pcs,device bag1pcs,
  • Attention: optional extra battery,Buy extra battery pls visit this link.
  • 2D ,NFC ,LF(125K/134.2K) for option;
  • Compact and Portable Ergonomic Design with wrist strap
  • Safedroid OS (Android 5.1) Highly optimized Android operating system.
  • 8.0M mega pixel camera.
  • High capacity 4000mA large capacity battery for critical requirements;
  • Pogo Pin interface for convenient charging with optional charge cradle.
  • Industrial rugged design, water-proof and protection grade(IP65) ;

Product data sheet

PL-40L technical specifications

Physical Parameter

Size

152mm(L)X77mm(H)x25mm(W)

Weight

<300g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port

SIM card, PSAM card(optional), Micro SD (TF) Card

Communication Interface

USB2.0 Device, RS-232(Optional)

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh

Frequency

8Ω 1W speaker

Key

21pcs soft silicon key

Performance Parameter

CPU

Quad-Core ARM Cortex-A53 CPU1.3G

RAM

2G RAM

Flash ROM

Standard 16G NAND Flash Storage

Micro SD/TF port Max up to 32G

Data Communication

WI-FI

Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover

4G All netcom

FDD-LTE 4G:

Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ

Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ

Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ

WCDMA:

Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ

Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ

GSM:

850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ

900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ

1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ

1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ

Bluetooth

Support Bluetooth 4.0, transmission distance is 5-10m

Operating Environment

Operating Temperature

—20 to 50

Storage Temperature

—25 to 70

Environment Humidity

5%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

Sealed Environment

IP65

Development Environment

Operating System

Android5.1

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect

One dimensional laser scanner

Honeywell N43XX

Resolution

4Mil minimum width

Ambient Light

10000ft.candles 107640 lux

Scanning Speed

104(±)12/sec (bothway)

Scanning Angle

47º±35º(Standard) / 35º±3º(narrow angle)

Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

Two-dimensional bar code acquisition

CMOS Scanner

Honeywell 3680

The Sensor Resolution

752(level)x480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

Focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

RFID

LF

125K/134K;ISO11784/ISO11785 protocol

HF

13.56MHz;ISO14443A/B 15693 protocol

Camera

Hd 8.0 million pixels, with LED, automatic focusing

GPS

Support A-GPS

Certificate:
