The Best Seller Machine Product provide Excellent Clearance 60KTYZ-B 10rpm 14W 220 - 240V 50/60HZ AC synchronous motor CW CCW multimedia classroom meeting room 150" Electric sreen machine. Now USD ~ USD /piece. Dont waste your time. Buy Now only in DGJL MOTOR TECHNOLOGY CO., LIMITED Trusted Seller Store!
Dear customer,
Important Policy,
German customs: extra 6 Euros for value >22 Euros.
Swedish customs: extra 7.5 Euros for value <150 Euros, 12.5 Euros for value >150 Euros.
Cheapest method ship to Russia via China Post Air Parcel( CDEK or TONY, free of customs duty).
Notice:
1. Leave your e-mail, or we wouldn\'t responsible for any circumstances can\'t ship.
If need a large quantity, please contact us to get best wholesale price and shipping cost.
2. We sincerely recruit Worldwide Agent at the lowest price.
3. We are the most professional /reliable manufacturer/supplier of Electric Motor and Accessories in China Mainland.
We will always effort to provide not only high-quality products, reasonable price, but also safe and convenient purchase environment. Questions and suggestions are appreciated.
Shipping Tips:
1. Almost all item is in stock, we will send out in 24 hours. After place order, you can request for SLDPRT and IGS files of all motors.
2. Express: We----Agent----DHL/FedEx----Customer. Package to DHL/FedEx total cost 3 days. Tracking number will come out in 3 days.
If you need directly send to DHL/FedEx, it will save 3 days, cost 5~10 times more.
3. Post Air Mail sometimes will be delayed, pls don\'t leave a 1~3 stars feedback.
If shipping delay, contact us extend protect time before the dispute, and keep in touch, it\'s respect for us. We will share buyers to the blacklist to all Chinese suppliers if raise a dispute without contacting us first.
4. If you are in Remote Area of DHL/FedEx, we reserve the right charge for Remote Surcharge.
5.We would always declare lower value to avoid tax. Or pls specify the declared to avoid unnecessary trouble at customs.
Customers responsible for customs duty.
We Supply:
DC /AC Motor, Worm Gear Motor, Spur Gear Motor, Stepper Motor, Synchronous Gear Motor, Servo Motor, Linear Actuator, Brush motor, Brushless motor, Electric Adapter, Power Supply, Motor Controller.
Rigid /Flexible Coupling, Universal Joints, Timing Belts, Timing Pulleys, Spur Gear, Bevel Gear, Gear Rack, Chain, Sprockets, Axles, Bearing etc. You can browse categories.

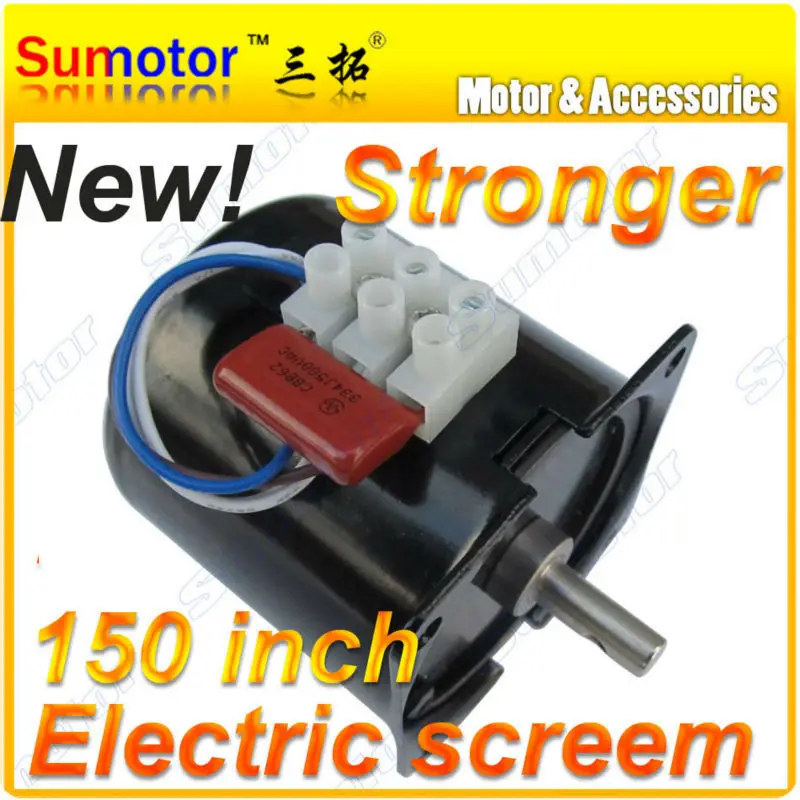

60KTYZ-B 10rpm Input rated power 14W 220 - 240V 50HZ 60HZ AC synchronous gear motor, CW/CCW, Reversible, for Electric screen machine, Projector screen motor, Phote pad pasting/Laminator, Pure copper coils, long lifespan high quality, welcome wholesale/retail
for multimedia classroom meeting room 150" Electric sreen machine
Drawing
This motor with small power consumption, large torque, low noise, small size, light weight, easy to use features.
The motors widely used for: Electric curtain, Small dining-table/Turntable, Barbecue equipment, Sausage machine, Electric screen machine, Projector screen motor, Phote pad pasting/Laminator, Smoke exhaust ventilator, AD billboard. Stage lighting, all kinds of valves, medical instrument, research facilities, sports apparatus. Automatic instrument and meter, Electric model, Electric advertisement, Mahjong table, Banknote counter, Bill-counting machines, Monitor platform, AD Light. Microwave Turntable Turn Table, Warm Air Blowe, Small fans, Cooling heating valve, Warm Air Blower, Fans Oscillating Motor, Crafts rotate exhibition, electric summons apparatus. And widely used for all low power and low constant speed running equipments.Bracket for this motor
US $ 4.00/piece Following is AC synchronous Motor List 70KTYZ, 60KTYZ, 50KTYZ is consist of Permanent Magnet and gear box, can control CW/CCW, which change rotate direction by change connect line. TYC49, CW/ CCW, you can\'t control rotation direction, its rotation direction is randomly. Each time you start the motor or resistance may change rotate direction. All TYC49 gear material is daicel plastic.
<
| Model | Voltage (V) | Rated Speed (r/min) | Rated Torque (N*cm) | Power (W) | Capacitance | Dimension(mm) exclude shaft | Shaft (mm) | Typical Application | Feature | Net Weight (Kg) |
| 120FH | AC 220V (50HZ) | 1 | 1000 | 14 W | 124x72x100 | Φ10x35 | Industrial Equipment | CW/CCW Pure copper coils All metal gear | 0.9 | |
| 70KTYZ | AC 220V (50HZ) | 5 | 600 | 20 W | 0.68uf | 71x71x83 | Φ8x22 Eccentric | Industrial Equipment | 1.1 | |
| 11 | 580 | |||||||||
| 15 | 500 | Electric sreen≤150" | ||||||||
| 24 | 310 | Industrial Equipment | ||||||||
| 47 | 160 | |||||||||
| 60KTYZ | AC 220V (50HZ) | 2.5 | 600 | 14 W | 334nf | Φ60x60 | Φ7x19 Centric | Small dining-table/ Turntable | CW/CCW Pure copper coils Part metal gear | 0.55 |
| 5 | 400 | |||||||||
| 7.5 | 300 | Sausage machine | ||||||||
| 10 | 200 | Phote pad pasting/ Electric sreen≤120" | ||||||||
| 15 | 140 | |||||||||
| 20 | 100 | Smoke exhaust ventilator | ||||||||
| 30 | 75 | AD billboard/ Automation instrument | ||||||||
| 50 | 40 | |||||||||
| 60 | 35 | |||||||||
| 80 | 30 | |||||||||
| 110 | 18 | |||||||||
| 60KTYZ-B | 10 | 250 | 334nf | Φ60x60 | Electric sreen≤150" | |||||
| 60KTYZ-E | AC 220V (50HZ) | 2.5 | 720 | 14 W | 334nf | Φ60x68 | Φ8x26 Eccentric | Industrial Equipment | CW/CCW Pure copper coils All metal gear | 0.6 |
| 5 | 480 | |||||||||
| 10 | 240 | |||||||||
| 15 | 170 | |||||||||
| 20 | 120 | |||||||||
| 32 | 90 | |||||||||
| 60 | 42 | |||||||||
| 110 | 20 | |||||||||
| 50KTYZ | AC 220V (50HZ) | 1 | 280 | 6 W | 153nf | Φ51x38 | Φ7x16 Eccentric | Monitor platform | CW/CCW Pure copper coils Part metal gear | 0.23 |
| 2.5 | 230 | |||||||||
| 5 | 150 | |||||||||
| 10 | 80 | Hairdressing rotate light | ||||||||
| 15 | 50 | |||||||||
| 30 | 28 | |||||||||
| 60 | 18 | AD Light | ||||||||
| 90 | 12 | |||||||||
| 120 | 9 | |||||||||
| 150 | 7 | |||||||||
| TYC49 | AC 220V (50HZ) | 2.5 | 50 | 4 W | Φ50x20 | Φ7x15 Eccentric | Wind guide of fan/ Microwave Oven | Non-directional All plastic gear | 0.08 | |
| 5 | 40 | |||||||||
| 10 | 20 | Crafts rotate exhibition | ||||||||
| 15 | 15 | |||||||||
| 20 | 12 | |||||||||
| 30 | 8 | |||||||||
| Remarks: | 1). All above motor also can use for 60HZ.. If use 60HZ input, all motors\' speed is 1.2 times to above sheet(50HZ). 2). Size and weight is for you reference, they are depend on actual products. | |||||||||
| 70KTYZ, 60KTYZ, 50KTYZ, can change rotate direction by change connection. TYC49, non-directional rotate. Circuit opening may change rotate direction, large resistance will change rotate direction. All TYC49 gears\' material is Daicel plastic. | ||||||||||
How to select motor.
Confirm the Voltage, Torque, Structure, Work rule.
Voltage: DC/AC, Voltage value.
Structure: Right Angle Output, Straight Output, Go and Back, Rotation Work, Line Work.
Work Rule: How long work in a period.
Torque: Constantly Working Torque should not exceed 75% of the motor’s Rated Torque. Instantly Working Torque should not exceed motor’s Rated Torque.
Motor under loading, Measure Current should not exceed motor’s Rated Current. If necessary, you can install Overcurrent Protection Device.
Why don’t motor running?
Your motor if is low speed motor, extra low speed motor should observe carefully. Connection if is correct, and other electric parts if is fine. All products from our store was test before shipping, and with best package. If also have problem please contact us.
Install and Operate notes:
Don’t store or operate in high temperature or damp environment, and avoid gas environment.
The motor’s shaft axial direction and radial direction bearing stress should not exceed it ability.
When install gears/sprockets/pulleys on the output shaft, don’t unusual strike.
When fix motor, screws length should not be too long, or will break the parts inside motor.
About noise:
DC high speed motor will produce a little noise, if very care about noise, please kindly contact us.
All Dimension Drawing default Measurement Unit is "mm".
