English menu Fiber Fusion splicing machine KF4 Fiber Optic Fusion Splicer Automatic Motor Drive Swift KF4 Fiber Fusion Splicer


The Best Seller Machine Product provide Fantastic Deals English menu Fiber Fusion splicing machine KF4 Fiber Optic Fusion Splicer Automatic Motor Drive Swift KF4 Fiber Fusion Splicer. Now USD ~ USD /piece. Dont waste your time. Buy Now only in Shenzhen city Hivi communication equipment Co. Ltd. Trusted Seller Store!

English menu Fiber Fusion splicing machine KF4 Fiber Optic Fusion Splicer Automatic Motor Drive Swift KF4 Fiber Fusion Splicer By DHL

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much

Product Attributes

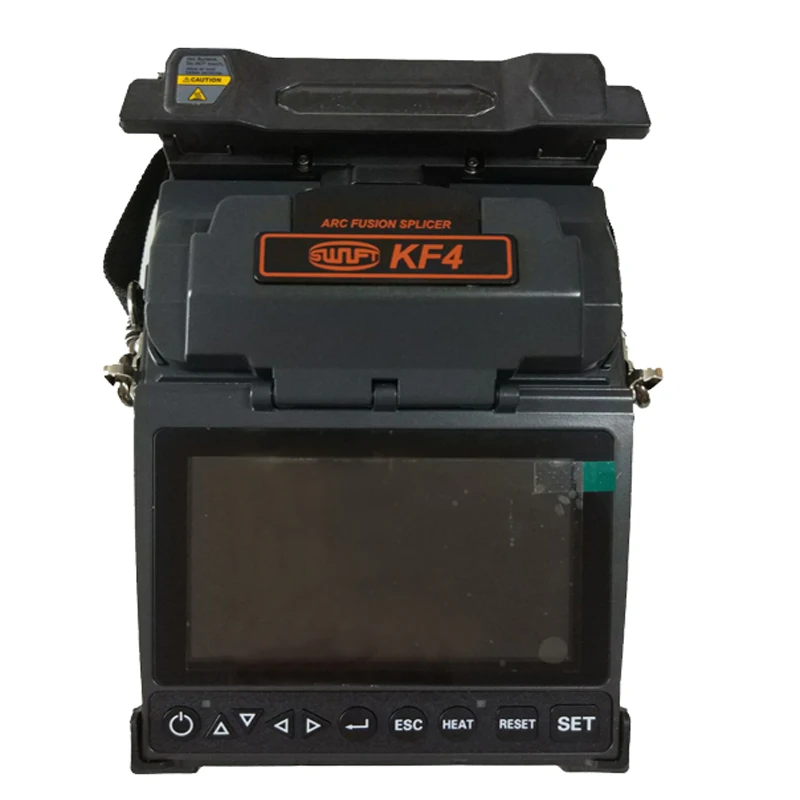

Swift KF4 is very versatile and super accurate active cladding alignment fusion splicer that satisfies every aspect of splicing requirement. With slim, yet rugged and extremely light, budget priced Swift KF4 assures users of convenient and stable process as well as high performance. .

SPECIFICATIONS

Category Description
Fiber alignment Active V-Groove Alignment
Applicable type of fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor cable
Fiber count Single fiber
Applicable fiber dimensions Cladding diameter: 125um / Coating diameter: 150um~3mm
Fiber setting and cleaved length 5mm to 16mm
Splicing modes Splice mode: 300, Heater mode:100
Typical Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss > 60dB
Splicing Time Typical 7sec (Standard SM, SM-SM mode)
Splice loss estimate Available
Sleeve heating time Typical 13sec with IS-60 mode, IS-60 sleeve
Applicable protection sleeve 40mm,60mm and micro sleeves
Storage of splice result Date : 5,000 Up to, Image: 5,000 Up to
Tension test 1.96N to 2.25N
Operating condition Altitude: 5,000m above sea level, Temperature: -10℃~50℃, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
Storage condition Temperature: -40℃~80℃, Humidity: 0~95%
Dimension 124(W)x189(L)x75(H)mm(Without rubber protector)
Weight 1.1kg(Including battery)
Viewing method and display Two CMOS cameras and 4,3-inch color LCD monitor
Fiber view and magnification X/Y : 130X MAX:260X
Power supply Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger
No.of splice cycles with battery Typical 200 cycles
Electrode life More than 3,000 times
Terminals USB
STANDARD PACKAGE

Category Model Q’ty
Arc Fusion Splicer KF4 1
Battery Adapter FY1701000 1
Spare Electrode EI-24 1pair
Cooling Tray CT-01(40mm) 1
User Guide CD - 1
Carrying Case Soft Case(ILST-SS03 L) 1
Battery KF-3400 1
Cleaver CS-01 1
Alcohol Dispenser PP 1
Manual Stripper CF-02 1
USB Cable - 1
