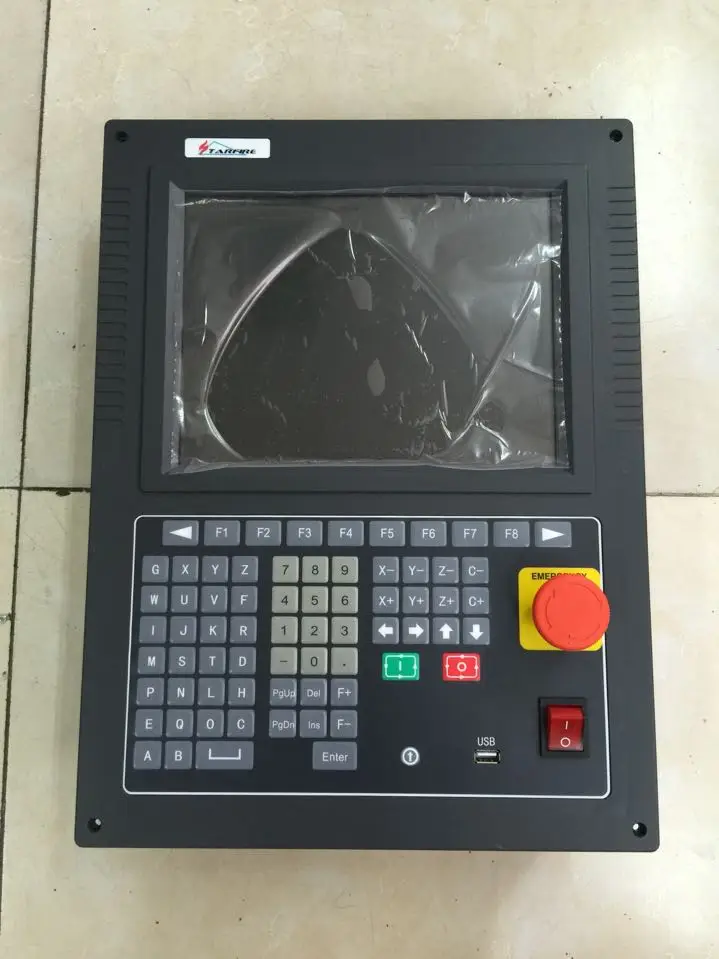

SF-2300S CNC Controller Flame Plasma Cutting Machine 10.4'' Screen Advanced Version of SH/F-2200H System

The Best Seller Machine Product provide Big Offers SF-2300S CNC Controller Flame Plasma Cutting Machine 10.4'' Screen Advanced Version of SH/F-2200H System . Now USD ~ USD /piece. Dont waste your time. Buy Now only in E-tech Industrial Co.,LTD Trusted Seller Store!

SF-2300S CNC Controller Flame Plasma Cutting Machine 10.4\'\' Screen Advanced Version of SH/F-2200H System

This model of CNC controller system is SF-2300S, advanced version of SH-2200H or SF-2200H. Similar appearance, operation and price, but more reliable and fast.

If you need old version SH/F-2200H, contact us or leave message.

We also have other parts to support this system, such as handle controller, machine cabinet. Contact us if need.

Remote controller

(without battery when shipment according to destination of international shipping)

Package including:

1* SF-2300S CNC control system (the software could grade at any time)

1* Input plug (25 pin)

1* Output plug (25 pin)

2* Motor plug (9 pin)

2* Plug (9 pin)

1* Power supply cable

1* manual

This cnc control system support English/ Chinese two version.

system function:

SF-2300S CNC cutting machine system, could control the machine tool to do the flame or plasma cutting. It can be set according to the process selection (set of parameters see the seventh chapter). The operation and display of the system, there are step by step function window for prompt. For example: in the main window menu, call a function, the system will launch the function of the sub window menu. According to the screen prompts, press from [F1] to [F8] to select the corresponding function, press the [ESC] button to return to the previous menu.

Characteristics of CNC system SF-2300S:

• SF-2300S-QG cutting machine CNC system applicable to all kinds of flame / plasma, high pressure water jet, laser cutting machine, widely used in metal processing, advertising, stone and other industries.
• the system high reliability design, with anti plasma interference, anti lightning, surge capacity.
• practical flame / plasma cutting process, plasma processing, automatic corner speed control, and increase control.
• can be used in wireless remote control or wired control box to achieve remote operation.
• With slotted compensation function, and testing procedures in compensation is reasonable, make corresponding reports for the user to choose.
• breakpoint recovery, automatic power outage recovery function, automatic memory.
• arbitrary selections and selection of perforation point processing, processing can be arbitrary skip processing.
• has the function of the extension and perforation of thick plate, and the bridging function is suitable for the thick plate.
• regression, excerpts, breakpoint recovery, optional position and other functions, greatly facilitate the user\'s control.
• can transfer cut at any time, choose the starting point processing, processing can be automatically broken.
• uses a small segment function, special walking smoothly, can be widely used in metal and advertising, iron etc..
• contains 24 kinds of graphics (expandable) parts library, including the commonly used basic processing parts.
• Be fully compatible with the STARCAM set of software, as well as IBE (Germany), FASTCAM and other mainstream software package.
• English and Chinese operation interface conversion, dynamic graphics display, Zoom the graphics 1 to 8 times, automatic tracking.
• Using U disk to read the program and timely software upgrades.
• Support LOGO image customization, users can modify their own logo (only for SF-2300S).
• Upgrade button setting, easy to operate (only for SF-2300S).
• Hardware technology index
• uses the industrial grade ARM processing chip;
• uses 10.4 inch truecolor TFT display, resolution 640*480;
• The system provides 16 way photoelectric isolation input, 14 way photoelectric isolation output.
• Linkage axis number: 2 axis, if need 4 axis contact us for other model.
• Pulse equivalent: molecular electronic gear, the denominator set range (1 ~ 65535).
• Running memory 64M, suitable for large processing program (SF-2300H).
• User program storage space: 32M ~ 64M (SF-2200H); 2G ~ 4G (SF-2300H).
• case size: 410 x 310 x 119 (mm);
• operating temperature of 0 degrees C ~ +40;
• storage temperature -40 C ~ +60

The dimension of CNC Control system SF-2300S:

If need more information, contact us.
