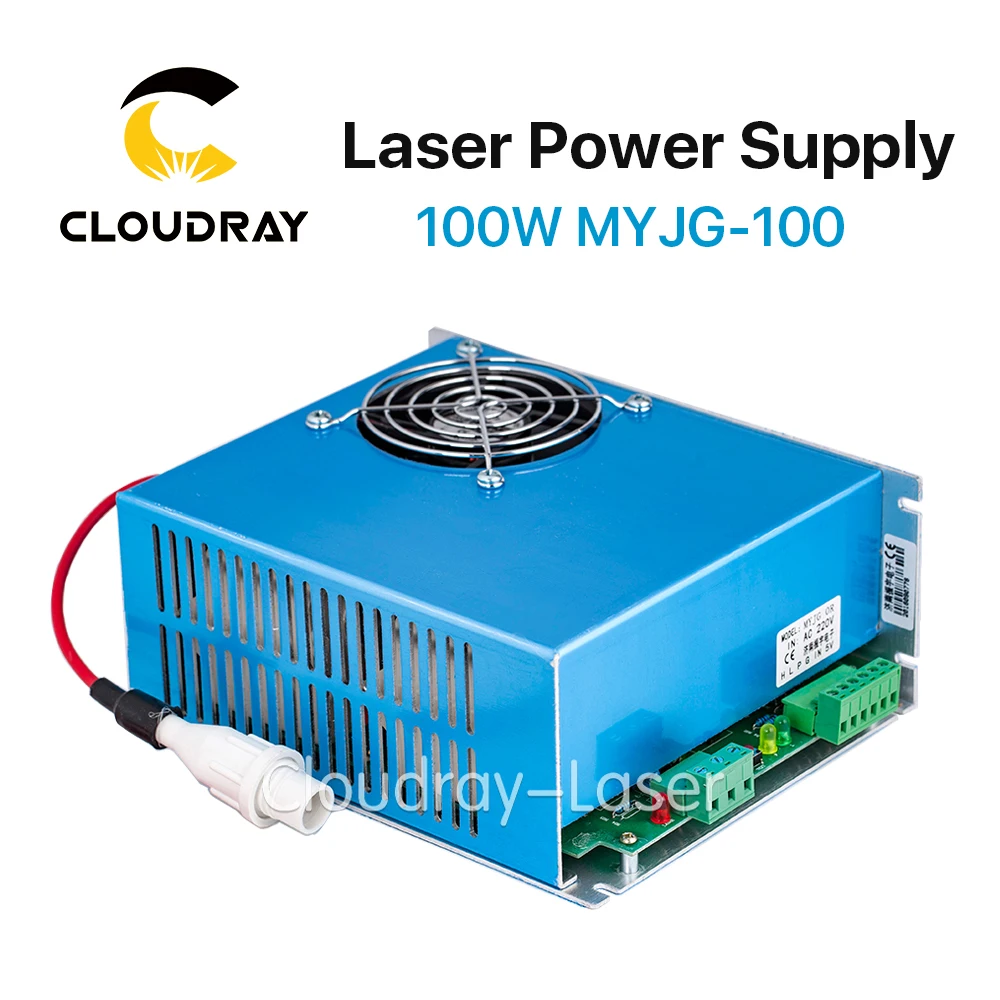

The Best Seller Machine Product provide Fast Gift Cloudray 100W CO2 Laser Power Supply for CO2 Laser Engraving Cutting Machine MYJG-100. Now only USD /piece. Dont waste your time. Buy Now only in Cloudray Official Store Trusted Seller Store!
1. Good compatibility: it can be applicable to 80W laser tube manufactured by various factories.
2. Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
3. Easy control: the start and stop of laser can be easily controlled by TTL level.
4. The power supply has output open circuit protection.
5. The power supply has TTL signal indication, water through signal indication and laser output indication.
6. This power supply has the Buttonto test output laser manually.
7. Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.
Input | Input Voltage | AC220V(Need AC110V ,please specify ,when order) |
AC frequency | 47 - 440HZ |
Max Input power | 440W |
Max Input current | 3A |
Output | Max output voltage | DC35KV |
Max output current | DC28mA |
Efficiency | >/=90%(Full load) |
MTBF | >/=10000 Hours |
Response speed | ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current) |
Withstand Voltage | Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure. |
Environment | Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90% |
Cooling | Forced air cooling (fan cooling) |
Notice: Please leave us message 110V or 220V is needed when place the order, thanks!
1.Laser Tube connection: (Refer to Power supply and laser Device\'s connection Diagram) High voltage terminal of HY-T60 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.
2.Connection of control signal( Refer to Power supply and control board\'s connection Diagram) The control signal shall be reliably connected to control terminal of the power supply HY-T60,after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal whether correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and protection switch WP connection is correct at same time.
3.Voltage of power input: HY-T60\'s power input of the power supply shall be 220VAC/50Hz. If 110VAC required please specify when placing order.
4. Others: A group of protection switches are also reserved for detection of water switch, fan switch,open-enclosure protection and so on.
Terminal Definition
| 1 | 2 | 3 | 4 | 5 | 6 |
| TH | TL | WP | G | IN | 5V |
Terminal definition as follow:
| TH | Input Signal | Switch Light Control,High Level(>=3V)-Bright dipping,Low Level(<=0.3V)-No Light Dipping |
| TL | Input Signal | Switch Light Control.High Level-No light Dipping,Low Level(<=0.3V)-Bright Dipping |
| WP*1 | Input Signal | Switch Light Control,High Level(>=3V)- No light Dipping,Low Level(<=0.3V)-Bright Dipping |
| G | Signal Ground | The foot must connected with laser machine\'s enclosure and ground properly. |
| IN*2 | Input Signal | Laser Power supply control terminal can use 0-5V Analog Signal Control,also can use 5V PWM Signal to Control |
| 5V | Output Power | 5V,Max output Current 20mA |
