China ZnSe CO2 Focus Lens Dia. 18 - 20mm FL 50.8 63.5 101.6mm 1.5 - 4" CVD for Laser Engraving Cutting Machine Free Shipping

The Best Seller Machine Product provide Great Clearance China ZnSe CO2 Focus Lens Dia. 18 - 20mm FL 50.8 63.5 101.6mm 1.5 - 4" CVD for Laser Engraving Cutting Machine Free Shipping. Now only USD /piece. Dont waste your time. Buy Now only in Cloudray Official Store Trusted Seller Store!

Laser focal lens

By Cloudray Laser

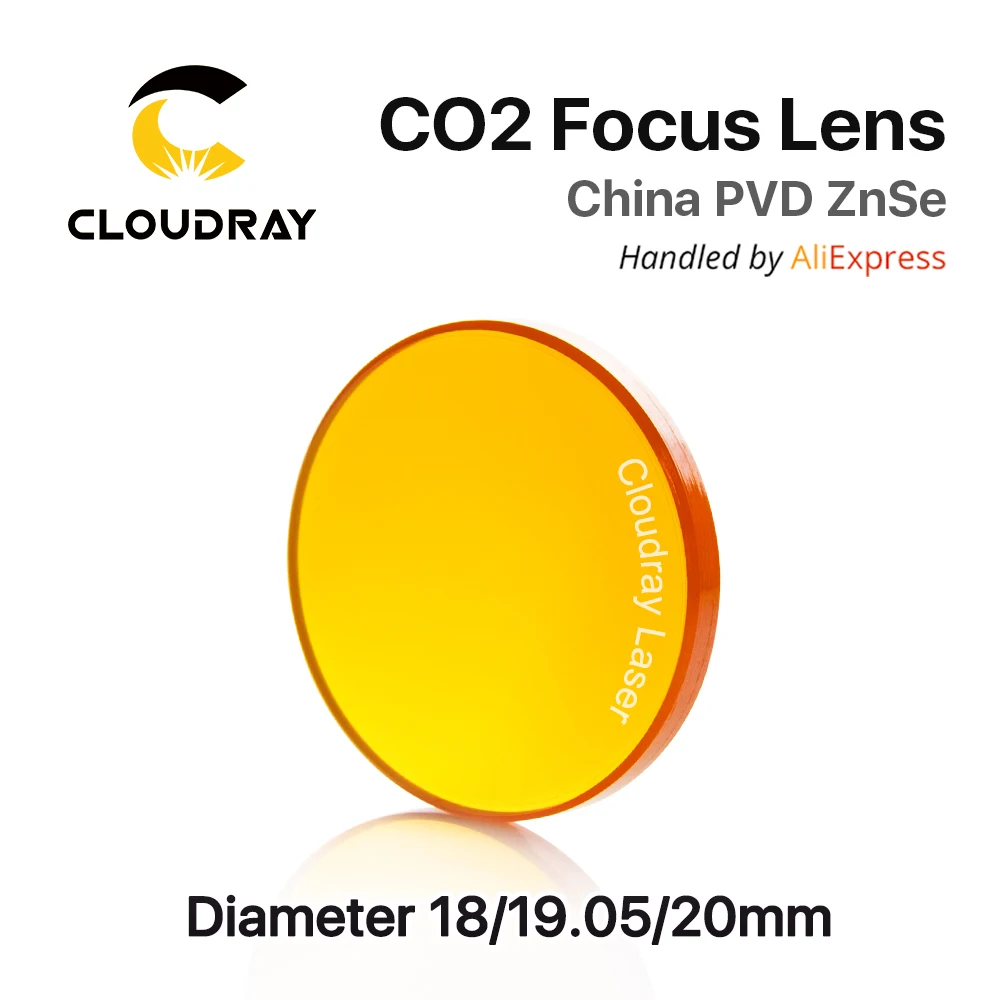

Features and specifications:

Specifications:
• Material: China PVD ZnSe (max 80 W)
• Wavelength: 10.6 um
• Diameter: 18/19.05/20 mm
• Diameter tolerance: +0/-0.1 mm
• Focal length: 1.5/2/2.5/3/4/5 inches
• Focal length tolerance: ± 2%
• Transmittance: 99.5%
• Clear aperture (polished) > 90%
• AR coating reflectivity < 0.3%
• Scratch-dig: 20 - 10

Showcase

High-quality ZnSe crystal

China PVD ZnSe material
Excellent optical poperties
Up to 80 W CO2 laser resistance

Superb coating process

Double-sided solid coating
Reduces laser loss
Laser transmittance up to 99.5%

High precision process

Excellent substrate
Precise slicing, polishing, grinding processes
High temperature, laser resistance, long working life

Laser light path schematic

1. Laser tube
2. First mirror
3. Second mirror
4. Third mirror
5. Focus lens

1. Lens tube
2. Focus lens (Reminder: Convex side should face laser, Concave side should face material)
3. Lens ring
4. Nozzle
5. Gas nozzle
6. Focal length (distance between lens and cutting/engraving material)
7. Working table

Cleaning instructions

1. Use an air bulb to blow off any loose contaminants. (dust, lint particles)
2. Squeeze a few drops of acetone onto the lens tissue, wetting the complete optic\'s diameter. (smudges, fingerprints)
3. Using the cotton swab and distilled vinegar, wipe the lens. Immediately use a wet cotton swab to remove any acetic acid, then clean with a clean dry cotton swab. (spittle, oils)

Individually packaged

Mo mirror

Diameter: 15/19.05/20/25/30/38.1 mm (3 pcs)

Si mirror gold-plated

Diameter: 19.05/20/25/30/38.1 mm (3 pcs)
