CO2 focusing lens
By Cloudray Laser
Product Description
① Material: USA CVD ZnSe ② Diameter tolerance: +0/-0.1mm ③ Wavelength:10.6um
④ Thickness tolerance: +0/+0.2mm ⑤ Transmittance: 99.5% ⑥ FL Tolerance: <±2%
⑦ Clear Aperture: >90% ⑧ Surface Figure: <λ/2 per 1"Dia
⑨ AR/AR coating: R<0.5% per surface ⑩ Surface Quality: 40-20scratch and dig
Product showcase

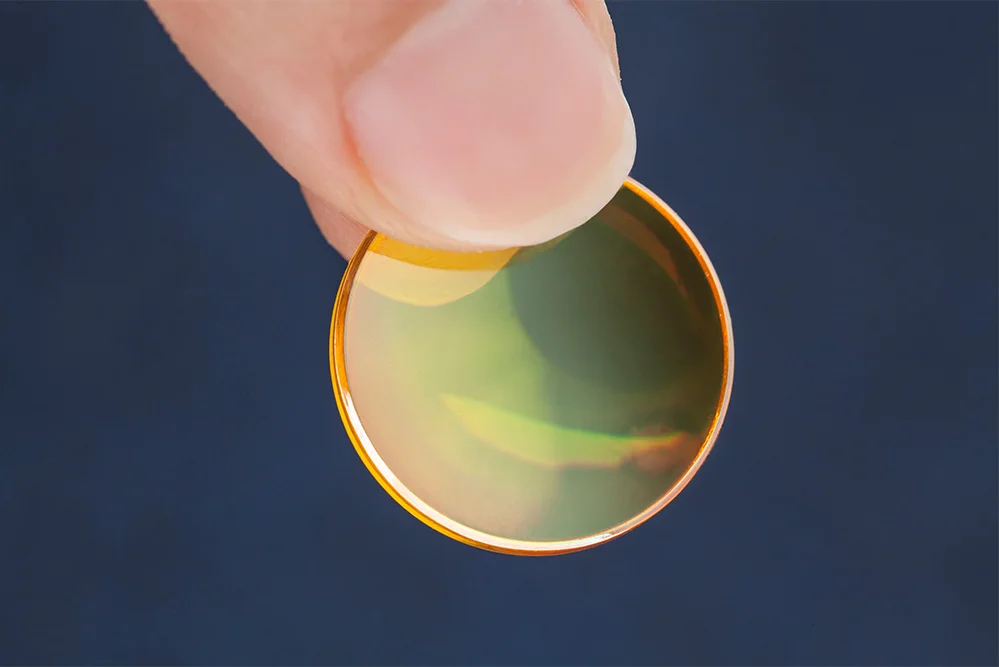

High quality ZnSe crystal
• CVD ZnSe Material • Excellent optical properties • Up to 200 W CO2 laser resistance

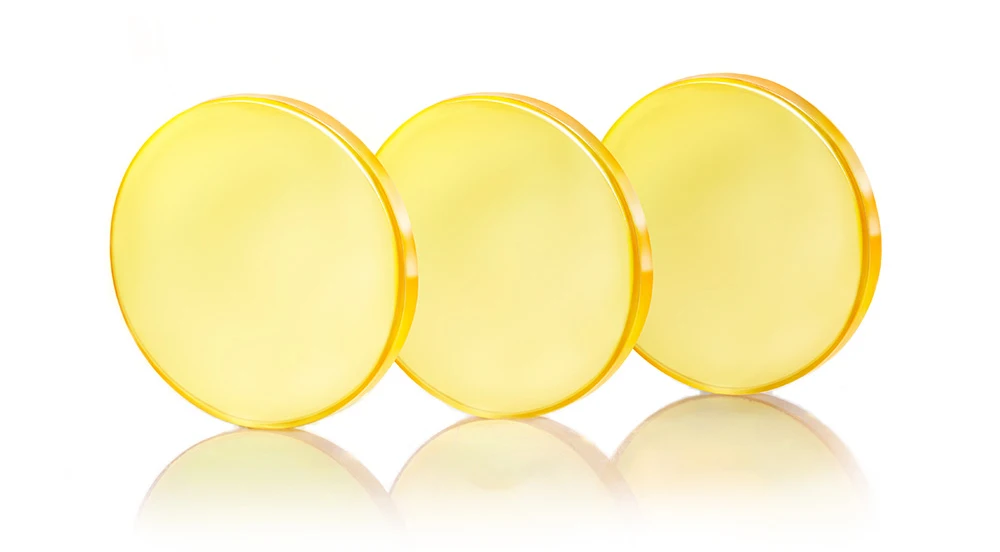

Superb coating process
• Double-sided solid coating • Wiping resistant • Extended durability

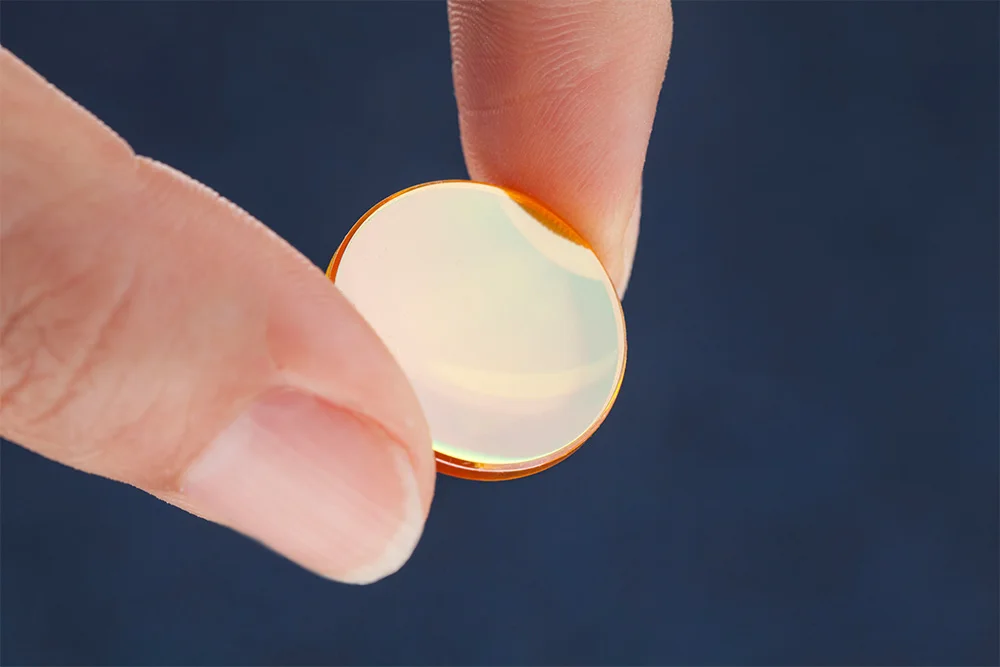

High precision process
• Precision slicing, polishing, and grinding processes • High temperature, laser resistance

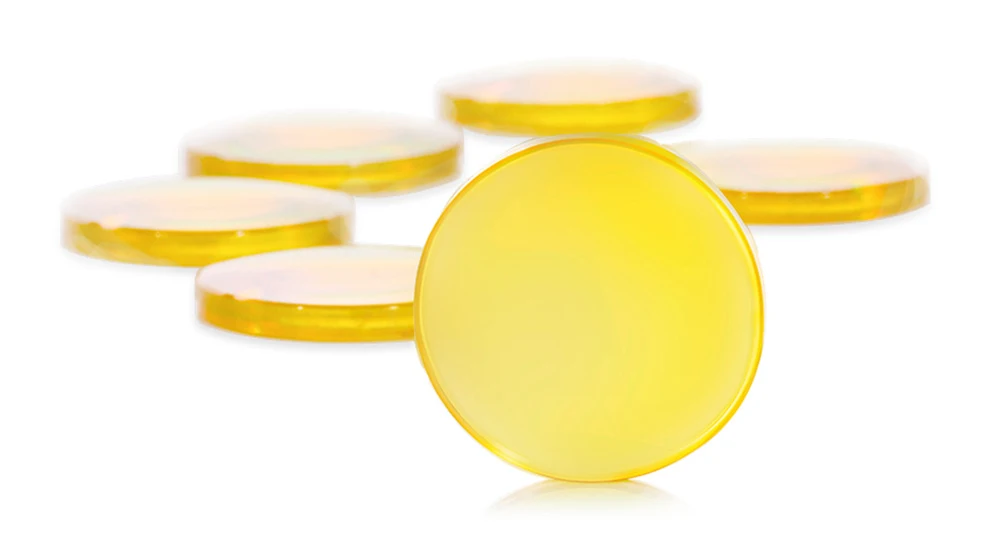

High transmittance
• High quality material and coating
• Reduced the laser loss
• Laser transmittance Up To 99.5% • Higher working efficiency

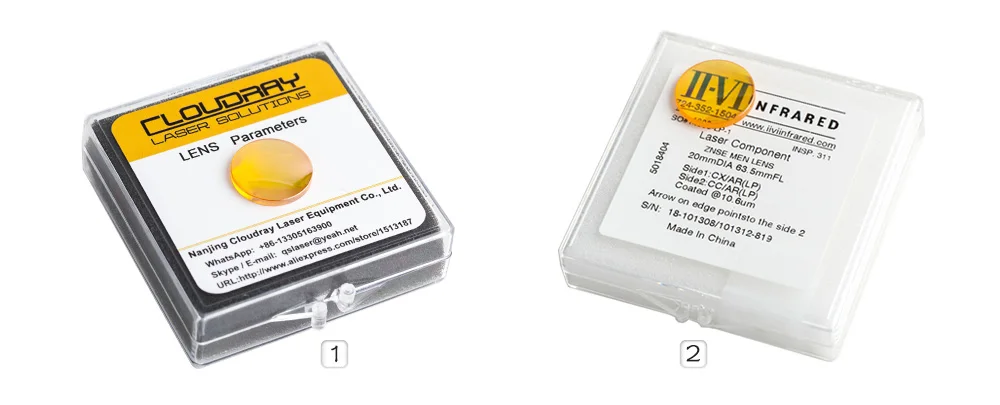

Individually packaged

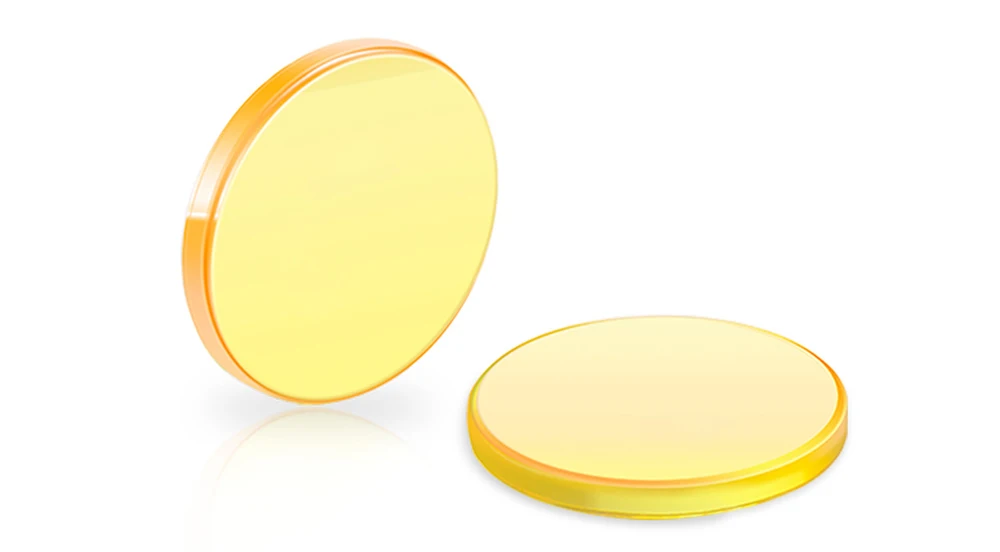

① CVD ZnSe focus lens
② II-IV ZnSe focus lens
Laser light path schematic
① Laser tube ② First mirror ③ Second mirror ④ Third mirror ⑤ Focus lens

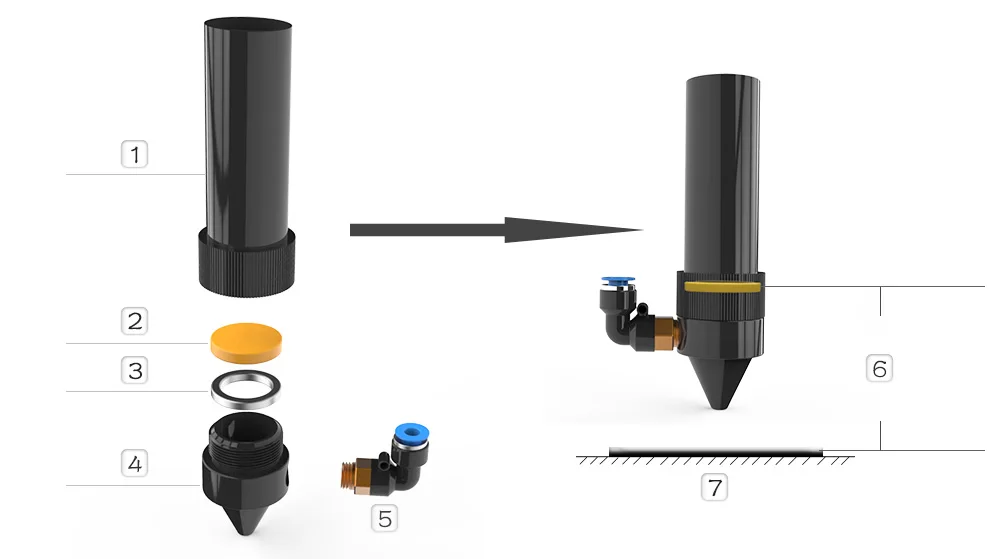

① Lens tube
② Focus lens (Be sure lens convex faces lazer and concave faces material)
③ Lens ring ④ Nozzle ⑤ Gas nozzle
⑥ Focal length (Distance Between the Lens and the cutting/engraving material)
⑦ Working table
Lens cleaning
① For loose lint or dust: use an air bulb to blow off any loose particles.
② For smudges or fingerprints: squeeze a few drops of acetone onto the lens tissue, wetting the diameter of the optic.
③ For droplets or oils: use a cotton swab and distilled vinegar to wipe the lens, then use a wet cotton swab to remove any acetic acid. Clean with a dry cotton swab.
Mo mirror
Diameter 15/19.05/20/25/30/ 38.1mm pack of 3 pieces
Si gold-plated mirrorDiameter 19.05/20/25/30/38.1 mm Pack of 3 pieces
