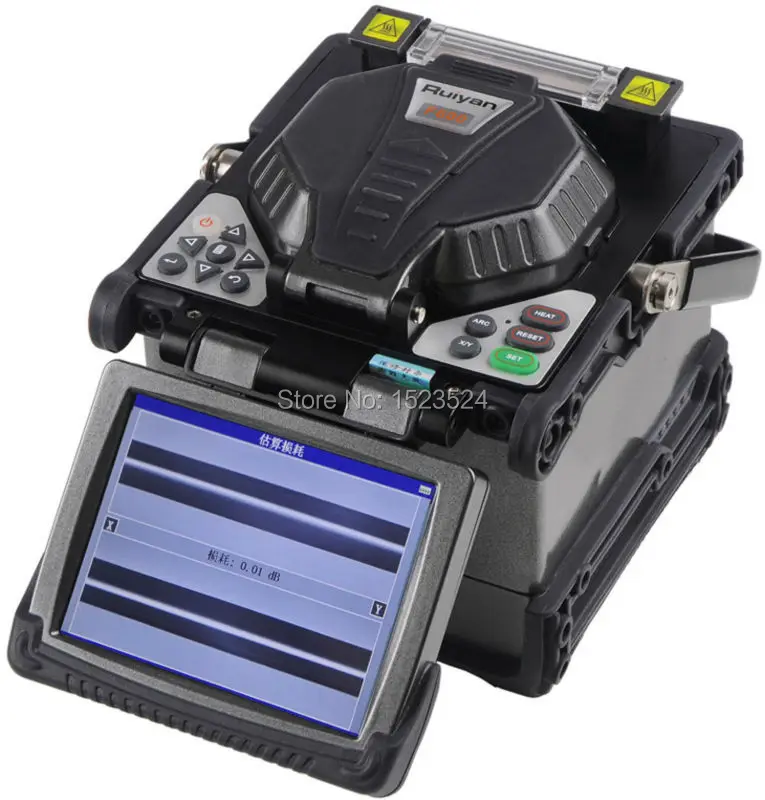

Original Ruiyan RY-F600 Fiber Optic Splicing Machine Fusion Splicer
Buyer Notice: RY-F600 just suits for 0.9mm fiber and RY-F600P suits for 0.25 0.9 2.0 2.4 3.0mm fiber and insulated fiber.
Features: Digital fusion splicer with automatic focus function Fiber core can be display clearly Single X or Y view and X & Y view simultaneously Auto detect cleaved endface fault Display fiber cleaved and offset angle Display core and clad offset 5.6 inch TFT color LCD monitor with clear digital image display USB & VGA interface Software upgrade via USB interface.Specification:
| Model | RY-F600 |
| Applicable fibers | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Fiber cleaved length | 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm) |
| Fiber diameter | Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm |
| Auto focusing | Available |
| Fiber aligning method | Core aligning, clad aligning, manual aligning |
| Average splice loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS) |
| Splicing time | Typical 9 sec,with standard SM fiber |
| Heating time | Typical 36 sec |
| Applicable sleeves | 60mm, 40mm and a series of micro sleeves |
| Tension test | 2N(option) |
| Electrode lifetime | 5000 times, replaceable |
| Battery capacity | Typical 400 cycles (splice and heat) |
| Battery Lifetime | Cycle life up to 300~500 times |
| Monitor | 5.1 inch TFT color monitor |
| Terminal | USB 1.1 and VGA , software upgrade via USB interface |
| Operating condition | 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s |
| Splicing mode | Auto , half-auto, manual |
| Fiber cleaved angle threshold set | 0.1 ~ 10.0 oC , 0.1oCstep |
| Power supply | Li-battery 11.8V , AC100-240V DC13.4V/5.0A |
| Dimension | L169*W152*H155mm |
| Weight | 2.4kg (not battery) 2.9kg(battery) |
Package Including:
| No. | Item | Quantity |
| 1 | Fusion Splicer Machine | 1 |
| 2 | Fiber Stripper | 1 |
| 3 | Optical Fiber Cleaver | 1 |
| 4 | Alcohol box | 1 |
| 5 | Tweezers | 1 |
| 6 | Charger | 1 |
| 7 | Spare Electrodes | 1 |
| 8 | Cotton swab | 1 |
| 9 | Cooling Tray | 1 |
| 10 | Product qualification certificate | 1 |
| 11 | Warranty card | 1 |
| 12 | User\'s manual | 1 |
