The Best Seller Machine Product provide Hot Discount CO2 laser DSP controller system Trocen AWC708C Lite for laser cutter engraver,replace AWC608. Now USD ~ USD /piece. Dont waste your time. Buy Now only in TECNR Store Trusted Seller Store!

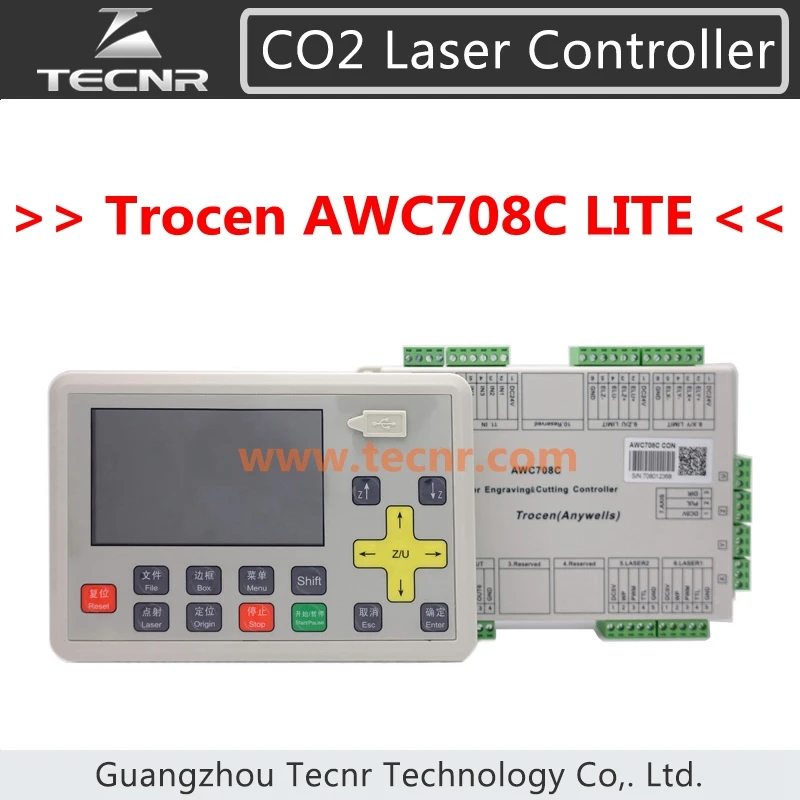

2018NEW Trocen Anywells AWC708C Lit e replace AWC608, It`s Double heads control system. It support up to 4 different axis. and can work without PC
- New 32 bit CPU with a higher speed.
- Support local time clock.Compared with 608 series,encryption function is more humanized.
- 4.3 inches true color display.More space to present files.Support off-line in U disk preview.laser head
- Support off-line setting parameters.Completed light-coupled isolated external electromagnetic interference.
- Support USB 2.0 high speed interface,more stable for U disk files reading and writing.High transmission
- Support double heads control and power could be separated adjusted.Support various laser sources
Operating System Environment Requirement
Run on Windows( Window2000Window XPVistaWin7 ) system
Celeron 2.1G above
Suggest using 1G above memory.
Chapter 2 Installation
2.1 Installation Steps
Model | AWC708C LITE |
Power | DC24V 3A |
Input | 6 roads |
Output | 6 roads |
Control axes | X YZU axis |
Laser quantity | Double heads which could be separated adjusted |
Laser source | Continuous ,RF ,co2 and solid laser source |
Laser power control | 0-100 percent ....0.1 percent continuously adjustable |
Precision | +/-0.01 mm |
Support format | DST , PLT . BMP . DXF .DWG. AI |
Support software | Laser CAD (Plugin support CORELDRAW AUTOCAD,Adobe 111- ustrator ) |
No | Part Name | PCS |
1 | AWC708C panel | 1 |
2 | Interface panel | 1 |
3 | 3M USB cable | 1 |
4 | Network cable | 1 |
5 | 8P extended lines | 1 |
6 | 12P panel connection cable | 2 |
7 | Screw | 2 |
The software and manual will be sent by email! |
