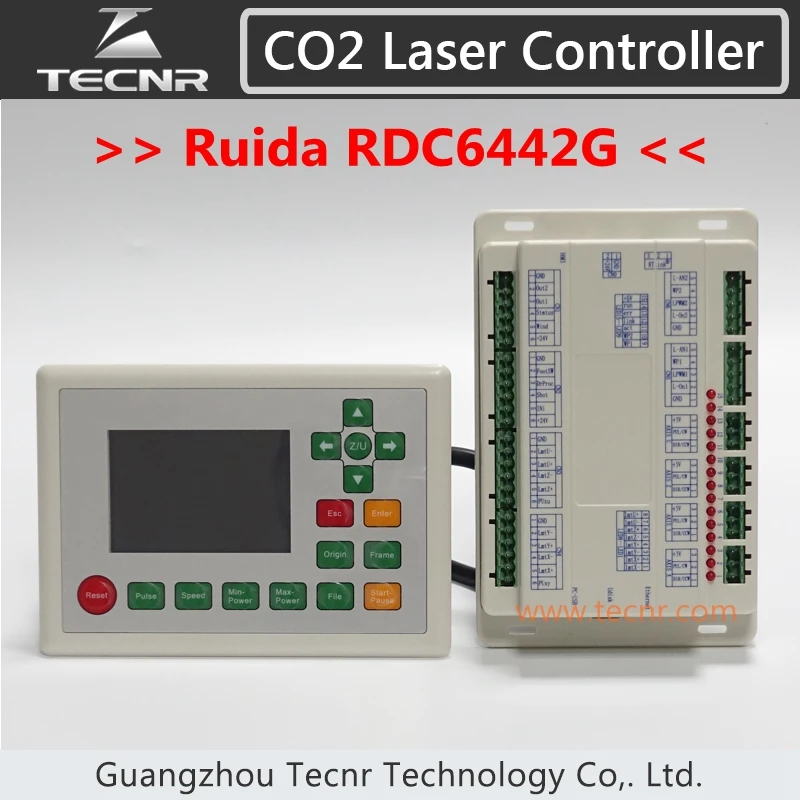

RUIDA RDC6442G CO2 Laser Control System 4 axis DSP controller for co2 laser cutting machine RDC 6442G

The Best Seller Machine Product provide Cool Deals RUIDA RDC6442G CO2 Laser Control System 4 axis DSP controller for co2 laser cutting machine RDC 6442G. Now USD ~ USD /piece. Dont waste your time. Buy Now only in TECNR Store Trusted Seller Store!

Features of RDC6442G laser control system RuiDa laser controllers Model : RDC6442G 320*480 3.5 inch color screen TFT display support 4 axis motion Ethernet and USB communication Suitable software : RDWorksV8

• Digital laser control signals:

(1) TTL level output, 50 mA,drive capability(can set enable signal polarity in software)
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V

• Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ
• USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
• Network:Max. transmission rate is100M; Max. transmission distance is 200M.
• Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
• Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
• Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

Product Model : RDC6442G 6: the sixth generation controller 4: controller version 4: 4-axis X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen) G: standard If you need 6442S, please leave us message when placing the order. Application area: laser cutting, laser engraving, laser welding etc. Power:+24V, >2A Temperature: 0~50 °, humidity is not greater than 70%.

If you need the Manuals and Software, please leave us your email address. We will send them to you.

Electrical Connection of Control System Connection of Motor Driver Connection of Glass Tube Laser Power
