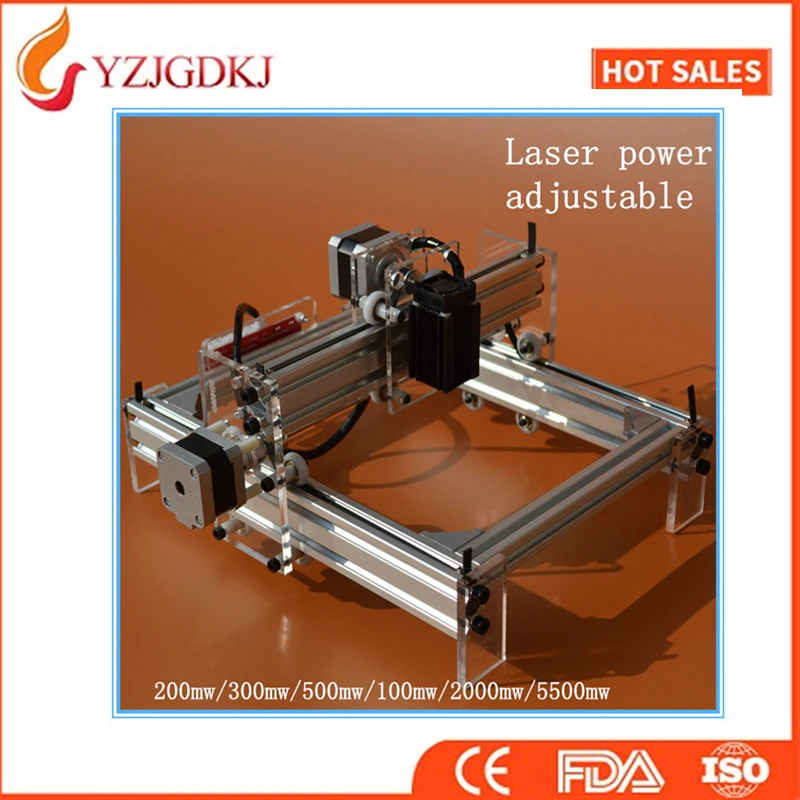

The Best Seller Machine Product provide Excellent Limited 5500MW laser power DIY laser engraving machine,Mini laser engraver ,best gift for festival,advanced toys,support 7 language. Now USD ~ USD /piece. Dont waste your time. Buy Now only in Yuser Laser Equipment Store Trusted Seller Store!
Support for ultra-simple editing software, the novice can start with 10 minutes Specifications:
| Brand | YZJGDKJ |
| Model | 17*20CM |
| Control Board | benbox |
| Communication Port | MircoUSB |
| Laser Quick Replace | Support |
| Stepper Motor | 42H34S-1304A |
| Power Input | AC100-240V |
| Sysytem Support | Win XP/7/8/10 |
| Engrave Mode | Photo, Word, Scan, outline, Pixel Laser Engraving |
| Supported Formats | jpg, bmp, svg, G-code |
| Material | Stainless Steel and Acrylic |
| Working Voltage | DC 12V |
| Working Current | DC 2.5A |
| Laser Power | 300mw/500mW/1600mw/2500mw/5500mw7w/10w aviliable |
| Control Software System | cncc software |
| Engraving Accuracy | 0.01mm |
| Engraving Area | 17x20cm / 6.69 x 7.84inch (maximum) |
| Engraved object height limitatiion | No Limitation |
| Package Weight | 4.30kg |
| Can Engrave | Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc. |
| Can not engrave | Metal(7w and 10w can), Stone, Ceramics, Glass, Reflective or Transparent Material |
| Certification | CE, FCC, FDA(Please contact us if you need them) |
| Function | ideal for amateur laser engraving usage low-light positioning and freedom positioning functions. |
| Features | 17*20 ultra large engraving area,gantry shape design, no engraving height limitation. |
| Three stepper motor drive providing faster moving speed. | |
| 500mW violet laser module with heatsink, high laser engraving power and long-term available. | |
| can print any pictures easily |
software
Advantage: 1, the maximum engraving area of 17 * 20CM height limit 2, no mobile gantry engraving table, does not limit the size of the object to be engraved height, can be placed directly on top of work * (such as directly on the table carving the desktop) 3, the production of acrylic aluminum material + Also, on a more solid look tall 4, comes with powerful cooling device can work long hours 5, the software is easy to use, free upgrades for life. This paragraph engraving laser engraving machine is not available the following materials: Metal (regardless of thickness), stone, ceramics, jewelery, reflective material, a colorless transparent material, soft material This paragraph laser engraving machine can engrave the following materials: Wood, plastics, paper, bamboo, horns, and some cortex (purse), cell phone plastic shell, rubber stamp, photosensitive chapter, sponges, paper Shipping list: A whole machine A laser protective eyewear A power supply A USB computer connection line A set of Wrench engraving sample
Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. This is a whole assemble set and needs to assemble by your own.
3. Please note that the laser module should work less than half an hour per time, and then work again after cooling down.
4. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser
module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thank you.
5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according
to your video. It can effectively save your time and energy if you send the video to us with the problem description. Thank you in advance.
FAQ:
1. How to assemble the kit?
The assemble and connection manual will be sent to your email
2. What software can support this machine? And what image format? Engrave Mode?
Supported Software: ,, T2-Laser, , GrblController, LiteFire, Laser GRBL, etc.
Supported Image Format: jpg, bmp, svg, G-code
Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving
3. What system can the EleksCAM support?
PC Win XP 7/8/10 , Laptop is ok,too.
4.My laser doesn\'t work, what should I do?
If the machine does not work, it might because:
① Laser module/ driver board/motor/power supply is broken.Please check which part is the main problem,and then send us a video to prove it.
Or you can send us a video about your software setting,working laser and driver board. We will analyze it and give you a solution.
② The kit misses some accessories.Please compare with the instruction and tell us, we will send it to you for free.
③ The wire connection is wrong.Please check the connection like the picture shown.
④ Your computer could not support the software.Please use Win XP 7/8/10 to check it.
⑤ Software problem.Please check whether wires are inserted rightly. And then check your data setting.
5: My software shows: Not data, what should I do?
There might be two reasons.
① You did not open Administrator privileges to run the software. Please try this.
② Your computer architecture is incomplete:check whether VC ++ and. Net and directX are installed, and have to turn off the virus.
6. Can I regulate the laser power or the laser power is adjustable?
Our new Mana SE controller board can adjust the power. Please download our ElekesCAM software to do it.
7. Can I upgrade stronger power laser module by myself? Can I extent rail frame?
Yes,you can.DC12V laser module can be installled on this machine. The red is positive.You can also extent the frame by yourself,
but we do not provide rails. Please note that.
8. If my laser is broken and I might find the reason(Or I could not find) . What should I do?
① Find the reason: Take a video to prove the part is broken and then send it to us. we will give you a solution according to your video.
② Could not find the reason : Check the Question 4 first. If the problem could not be solved, please feel free to contact our customer
service with a video to my email.The video should contain software setting, broken part details and the power-on machine.
We will solve it asap.
