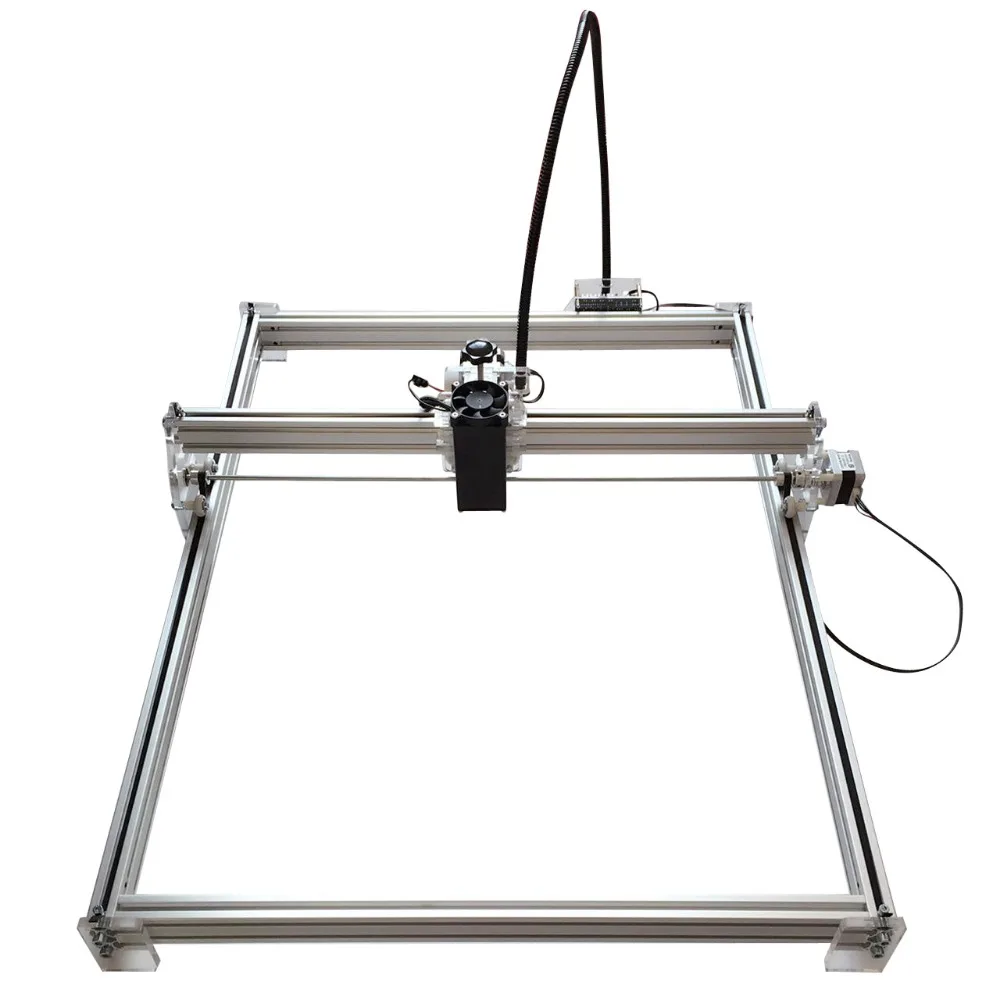

The Best Seller Machine Product provide 2018 Cheap 6550 Mini desktop DIY Laser engraving engraver cutting machine Laser Etcher CNC print image of 50 X 65 cm mark logo on dog tag. Now USD ~ USD /piece. Dont waste your time. Buy Now only in Yuser Laser Equipment Store Trusted Seller Store!
| Brand | YZJGDKJ |
| Model | 65*50CM |
| Control Board | Lasrexe |
| Communication Port | MircoUSB |
| Laser Quick Replace | Support |
| Stepper Motor | 42H34S-1304A |
| Power Input | AC100-240V |
| Sysytem Support | Win XP/7/8/10 |
| Engrave Mode | Photo, Word, Scan, outline, Pixel Laser Engraving |
| Supported Formats | jpg, bmp, svg, G-code |
| Material | Stainless Steel and Acrylic |
| Working Voltage | DC 12V |
| Working Current | DC 2.5A |
| Laser Power | 300mw/500mW/1600mw/2500mw/5500mw7w/10w aviliable |
| Control Software System | cncc software |
| Engraving Accuracy | 0.01mm |
| Engraving Area | 65x50cm / 25.59 x 19.68inch (maximum) |
| Engraved object height limitatiion | No Limitation |
| Package Weight | 6.30kg |
| Can Engrave | Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc. |
| Can not engrave | Metal(7w and 10w can), Stone, Ceramics, Glass, Reflective or Transparent Material |
| Certification | CE, FCC, FDA(Please contact us if you need them) |
| Function | ideal for amateur laser engraving usage low-light positioning and freedom positioning functions. |
| Features | 65*50 ultra large engraving area,gantry shape design, no engraving height limitation. |
| Three stepper motor drive providing faster moving speed. | |
| 500mW violet laser module with heatsink, high laser engraving power and long-term available. | |
| can print any pictures easily |
Buyers reading:
This machine is a full set of parts, required installed on their own, giving the purchaser to install software and tutorials
parameter:
1. The software can directly import pictures, enter text, support cad, dxf format
2. Support low light software, software adjust laser power
Advantage: 1, the maximum engraving an area to achieve 65* 50CM 2, aluminum material, acrylic produced 3, the software is easy to use, free upgrades for life. 4,it can adjust laser power by software This paragraph engraving laser engraving machine is not available the following materials: ,stone, ceramics, jewelery, reflective material, a colorless transparent material, soft material This paragraph laser engraving machine can engrave the following materials: Metal (steel ,stainless ),Wood, plastics, paper, bamboo, horns, and some cortex (purse), cell phone plastic shell, rubber stamp, photosensitive chapter, sponges, paper It can cut plywood 3mm for 1 time Shipping list: A complete machine A laser protective eyewear A power supply A USB computer connection line A set of Wrench Product detail drawings
engraving sample
Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. This is a whole assemble set and needs to assemble by your own.
3. Please note that the laser module should work less than half an hour per time, and then work again after cooling down.
4. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser
module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thank you.
5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according
to your video. It can effectively save your time and energy if you send the video to us with the problem description. Thank you in advance.
FAQ:
1. How to assemble the kit?
The assemble and connection manual will be sent to your email
2. What software can support this machine? And what image format? Engrave Mode?
Supported Software: ,, T2-Laser, , GrblController, LiteFire, Laser GRBL, etc.
Supported Image Format: jpg, bmp, svg, G-code
Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving
3. What system can the EleksCAM support?
PC Win XP 7/8/10 , Laptop is ok,too.
4.My laser doesn\'t work, what should I do?
If the machine does not work, it might because:
① Laser module/ driver board/motor/power supply is broken.Please check which part is the main problem,and then send us a video to prove it.
Or you can send us a video about your software setting,working laser and driver board. We will analyze it and give you a solution.
② The kit misses some accessories.Please compare with the instruction and tell us, we will send it to you for free.
③ The wire connection is wrong.Please check the connection like the picture shown.
④ Your computer could not support the software.Please use Win XP 7/8/10 to check it.
⑤ Software problem.Please check whether wires are inserted rightly. And then check your data setting.
5: My software shows: Not data, what should I do?
There might be two reasons.
① You did not open Administrator privileges to run the software. Please try this.
② Your computer architecture is incomplete:check whether VC ++ and. Net and directX are installed, and have to turn off the virus.
6. Can I regulate the laser power or the laser power is adjustable?
Our new Mana SE controller board can adjust the power. Please download our ElekesCAM software to do it.
7. Can I upgrade stronger power laser module by myself? Can I extent rail frame?
Yes,you can.DC12V laser module can be installled on this machine. The red is positive.You can also extent the frame by yourself,
but we do not provide rails. Please note that.
8. If my laser is broken and I might find the reason(Or I could not find) . What should I do?
① Find the reason: Take a video to prove the part is broken and then send it to us. we will give you a solution according to your video.
② Could not find the reason : Check the Question 4 first. If the problem could not be solved, please feel free to contact our customer
service with a video to my email.The video should contain software setting, broken part details and the power-on machine.
