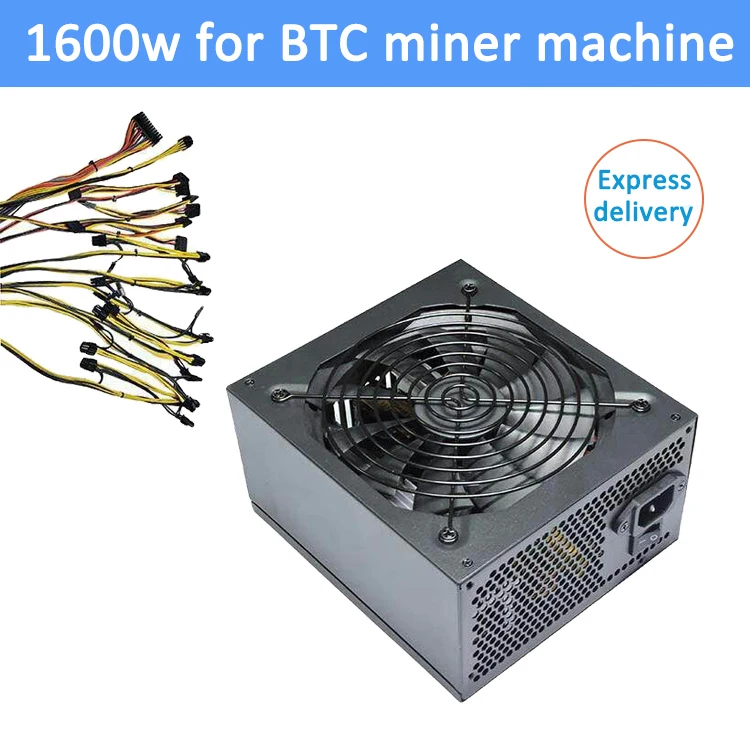

1600W miner machine power supply support 100v-240v full voltage for BTC bitcoin miner multi 4Pin IDE 8pin 6Pin 24Pin SATA
with 20+4 pin ,12pcs*(6+2)pin,7*sata,6*IDE molex,1*4+4pin
Product features
1. Switching time
Turn on Delay Time：100ms～500ms
Shutdown delay time：＞1ms
2. Power on: PS_on signal "low potential" (less than 0.4V)
3. Output terminal:
ATX1 1PCS*P1
Pin 1 +3.3V Orange Pin 13 +3.3V Orange
Pin 2 +3.3V Orange Pin 14 -12V Blue
Pin 3 COM Black Pin 15 COM Black
Pin 4 +5V Red Pin 16 PS_on Green
Pin 5 COM Black Pin 17 COM Black
Pin 6 +5V Red Pin 18 COM Black
Pin 7 COM Black Pin 19 COM Black
Pin 8 POK Grey Pin 20
Pin 9 +5Vsb Purple Pin 21 +5V Red
Pin 10 +12V Yellow Pin 22 +5V Red
Pin 11 +12V Yellow Pin 23 +5V Red
Pin 12 +3.3V Orange Pin 24 COM Black
Peripheral 6PCS*P1～P6 PCI-E 6PCS*8pin6+2 +12VDC
Pin 1 +12V Yellow Pin 1 COM Black
Pin 2 COM Black Pin 2 COM Black
Pin 3 COM Black Pin 3 COM Black
Pin 4 +5V Red Pin 4 +12V Yellow
Pin 5 +12V Yellow
Pin 6 +12V Yellow
SATA 6PCS*P7～P12 ATX2 1PCS*8pin4+4 +12VDC
Pin 1 COM Black Pin 1 COM Black
Pin 2 +5V Red Pin 2 COM Black
Pin 3 COM Black Pin 3 COM Black
Pin 4 +12V Yellow Pin 4 COM Black
Pin 5 +12V Yellow
Pin 6 +12V Yellow
Pin 7 +12V Yellow
Pin 8 +12V Yellow
Product description
1. AC input:
1.1 input voltage: 100V to 240VAC
1.2 input frequency: 47Hz to 53Hz
1.3 input current: average maximum current 10Amp in 220Vac
1.4 input surge current: 220V AC 25 degrees Celsius (ring temperature) maximum current 50Amp
1.5 input efficiency: full load 220V ac/50Hz 90%
1.6 input power factor: full load 220V ac/50Hz 0.98
2. DC output
2.1
| Voltage | +5V | +12V 1 | +12V 2 | +12V 3 | +12V 4 | +12V 5 | +12V 6 | +12V 7 | -12V | +3.3V | +5V SB |
| Peak current | 15A | 15A | 20A | 20A | 20A | 20A | 20A | 20A | 0.8A | 15A | 3.5A |
| Rated current | 12A | 12A | 18A | 18A | 18A | 18A | 18A | 18A | 0.5A | 12A | 2.5A |
| Minimum current | 0.2A | 0.1A | 0.1A | 0.1A | 0.1A | 0.1A | 0.1A | 0.1A | 0.1A | 0.1A | 0A |
| Voltage range | 4.75～5.25 | 11.4～12.6 | 11.4～12.6 | 11.4～12.6 | 11.4～12.6 | 11.4～12.6 | 11.4～12.6 | 11.4～12.6 | -10.8～13.2 | 3.14～3.47 | 4.75～5.25 |
| Maximum ripple | 50mV | 120mV | 120mV | 120mV | 120mV | 120mV | 120mV | 120mV | 150mV | 50mV | 50mV |
Note:
① +5V plus +3.3V power shall not be greater than 130W;
② Ripple measurement method is as follows:
The oscilloscope bandwidth 20MHz, ceramic capacitor electrolytic capacitor at the output end connected with a 10Uf/50V and a 0.1Uf/50V to the ground
2.2 No load start: the output voltage is in the normal range
3. Protection
3.1 overvoltage protection
+3V3 4.3V
+5V 5.8V
+12V 14.4V
3.2 short circuit protection
The output voltage terminal is connected to the output terminal (+12V lock machine, +5V lock machine, +3.3 lock machine, -12V lock machine, 5VSB automatic recovery)
1.3 protection function: overload protection 110 ~ 120% rated power lock machine
4. Security
4.1 absolute insulation: input to output AC 1750Vac/10Ma, 1 minutes;
4.2 Insulation resistance: input to output more than 50M Omega, DC 500W
5. E.M.C
6. Environment
6.1 Working temperature -2 ~ 40 DEG C, 10% ~ 90%RH
6.2 Storage temperature -20 DEG C to 85 DEG C, 5% ~ 95%RH, elevation height < 2000m
7. Cooling mode
7.1 Air cooling: 14CM fan
8. Mounting dimensions:
