50KHZ CNC 4 Axis Offline Controller Breakout Board Engraving Machine Control System Card

Specification:

Model Number	SMC4-4-16A16B
HZ	50KHZ
Axis	4 Axis, X Y Z A 4-axis linkage
CPU	32 bit ARM
Memory	2GB
LCD	320*240
Size	165*101*50mm
Language	English
Application	CNC Engraving machine and CNC Milling machine

Advantage:

1. Parameter setting : Can set, process and operation various control parameters, to reach the optimal effect.

2. Operate by Hand: Can control your systom by hand in this controller Don\'t need connect PC.

3. Program managment: This controller can built,delete,modify,read, save,automatic processing,continuous,pause and other functions.

Technical Information:

1. The smallest date unite: 0.0001mm

2. The biggest date unite: ± 99999.999mm

3. The highest frequency of pulse output: 50KHz (The 4 axises can reach 50KHZ at the same time)

4. Control axis: 4 axis (X, Y, Z, A axis)

Main features:

Parameter settings: For processing, control parameters related to the operation

Manual operation: can be achieved manually, jog back to the program zero, back to mechanical zero, cleared coordinate operations.

Program management: program can create, delete, modify, read, save, save, automatic processing, continuous, and pause.

External Manual: Manually define a variety of external functions to facilitate the use of

Freedom to select the input function: the limited input port can achieve a variety of user needs

System components

CNC system consists of the following components:

High-performance, high-speed 32-bit ARM CPU

Liquid crystal display (resolution: 320 × 240)

Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA)

Users machining program memory can be implemented in any storage TF card

Technical indicators

The smallest unit of data 0.0001mm

The maximum data size ± 99999.999mm

Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ)

Control axes 4 axis (X, Y, Z, A)

4-axis linkage axis and has a micro-multi-multi-axis interpolation control line forward

Appearance and Panel: Dimensions: length 165*101*50

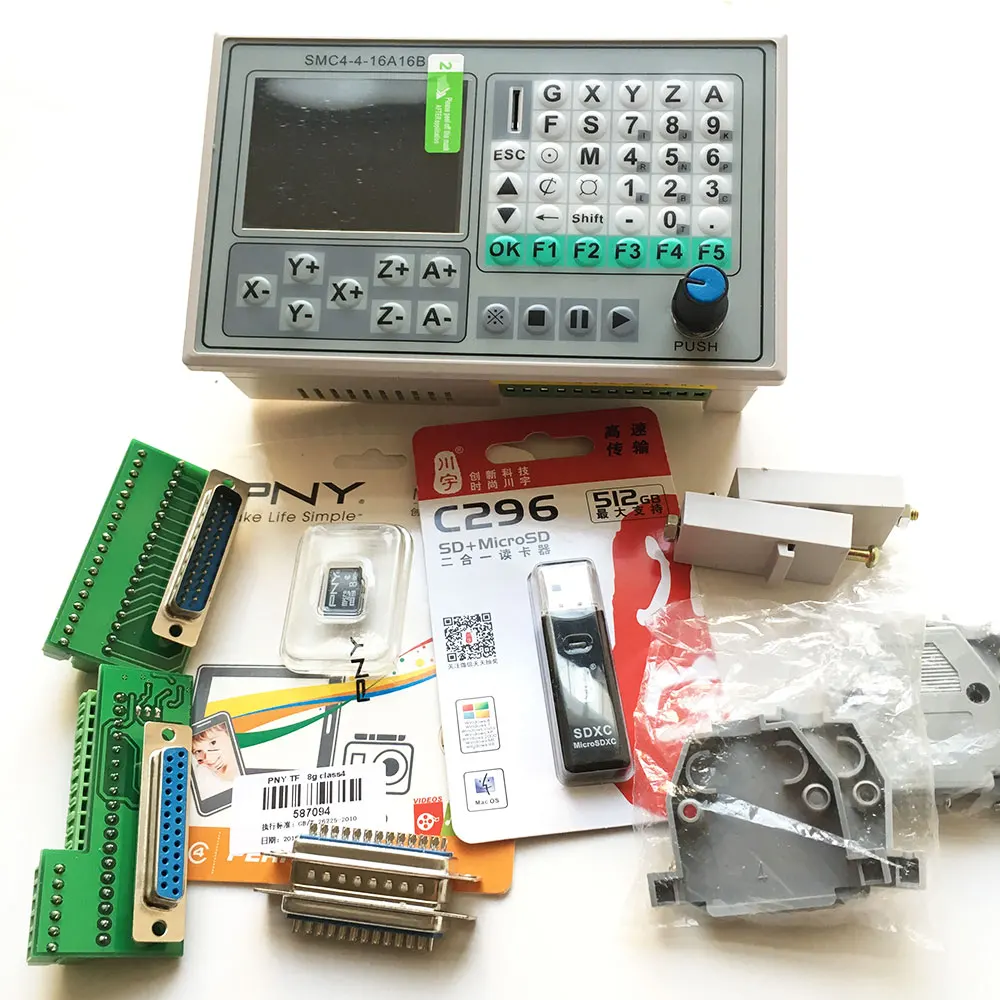

Package Included:

1 x Control breakout board
1 x IO input/Output connector(Optional)
1 x USB DISK
1 x Memory Card

The controller reliefs carved out of the picture

​
