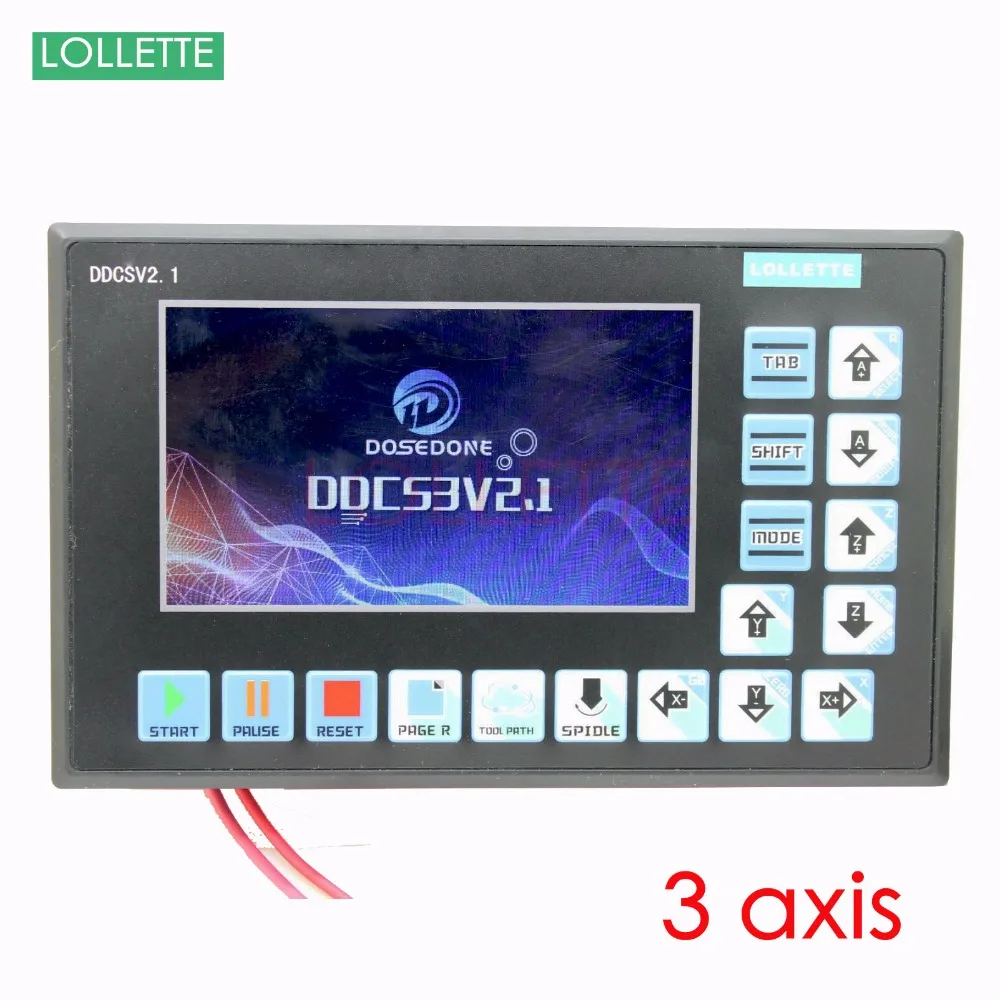

DDCSV2.1 3-Axis CNC Motion Controller 500KHz Stepper Motor Driver
The DigitalDream CNC has engaged in the numerical control industry for 7 years, specializing in the research, development and production work of various CNC(Computer Numerical Control)systems with high quality, high reliability. It can produce the common Brushless DC motor, Stepper motor driver as well as the 1 axisCNC system to 6 axesCNC system.
The DDCSV2.1 is the 4 axis and 4 axes motion controller which has been researched and developed by Faster CNC for four years. The control period of each position is only 4 milliseconds, with a high control precision. The highest uniaxial output pulse is 500KHz and the pulse width can be adjusted. It supports the common stepper motor and servo motor.
The DDCSV2.1 numerical control system adopts the ARM+FPGA design framework. The ARM can finish the part of human-computer interface and code analysis and the FPGA can finish the part of underlying algorithm and control pulse generate, with the reasonable design, reliable control and easy operation.
The panel layout structure of DDCSV2.1 is rational. The common off-line operation can be finished only by 17 keys and it supports the FANUC with high universality to be compatible with G code set. This specificationintroduces the operation method of caving machine’s special off-line CNC system, DDCSV2.1 and the machine tool connection as well as operation specification. By lots of graphical representation and examples, the uses can quickly learn to use the DDCSV2.1 CNC system.
DDCSV2.1 has made the following changes on the basis of DDCSV1.1:
1:The input signal is modified to support the NPN switch;
2: Support limit and the home share the input port;
3: Use the more stable FLASH, to ensure that no program loss;
4: Upgrade algorithm, support soft interpolation, modified V1.1 version of arc
interpolation bug;
5: Upgrade the power module, the system is more stable.
Performance parameter:
- Ordinary digital input interface of 16-circuitoptocoupler coupling isolation
- Ordinary digital input interface of 3-circuit optocoupler coupling isolation
- Output interface of 0-10V spindle control port with analog quantity(can be modified as PWM output);
- Support the 3 axis stepper motor control, the highest control pulse output of single axis is 500KHz;
- ARM9 main control chip;
- FPGA core algorithm chip;
- 4.3 inches TFT screen, resolution ratio: 480*272;
- 17 operational keys;
- The main control equipment is 18V-32V power input, the current capacity isrequired not to be lower than 0.5A;
- Support the USB flash disk to read the G code,and the size of G codefile has no requirement;
- Be equipped with MPG port and support digital display MPG as well as support the general MPG in the market.
- Support the panel key with single-axis manual operation, manual step and CONToperation;
- Support the operation of quickly specify the running position;
- Support the multi coordinate systems (with automatically saving function in case of power cut);
- Support the function of saving data automatically after power down (press the start to automatically save the data in the operation, automatically save the data after power down)
Outward Appearance, Structure and Size:
- The DDCSV1.1 adopts the embedded shell structure, which can punch a square hole on the equipment cabinet and then embed this equipment in the squire hole.
- Use two locking mechanism from the inside can fix this equipment on the equipment cabinet, with easy installation. The dimension figure of the product\'s outward appearance are as picture 1-1 and picture 1-2.
- The panel size of the product is 163mm*102mm*5mm;
- The size of main body is 156mm*93mm*45mm;
- The size of square hole installed on the equipment cabinet is 156mm*93mm
Package included:
- 1 x 3 axis motion controller
- 1 x 4GB USB Flash Drive
- 1 x USB Extension Cable
G00 Rapid Positioning
G01 Linear shavings
G02 Shun Circle / Spiral shavings
G03 Inverse Circle / Spiral shavings
G04 pause
G12 Clockwise circular shavings
G13 counterclockwise circle shavings
G17 circular interpolation plane is XY
G18 Circular interpolation plane ZX
G19 Circular interpolation plane YZ
G20 Inch programming
G21 Metric programming
G28 reference point through the intermediate point
G40 Tool radius compensation cancel
G41 Tool radius cutter compensation left
G42 right tool radius cutter compensation
G43 Tool length compensation positive
G44 negative compensation
G49 cancel length compensation
G53-G59 user coordinate system 1-6
G81 drilling cycles
G82 hole bottom suspend drilling cycles
Drilling cycle G83 chip
G90 absolute coordinate programming mode
G91 Incremental coordinate programming mode
G92 default coordinate system G92 can be used to adjust the position of the workpiece coordinate system
G94 programming units / min feed mode
G98, G99 fixed cycle Retract mode for G80-G83, you can set when the drilling is completed, it is to return to Z position or R position
