The Best Seller Machine Product provide Super Cheap 400w CNC AC Servo Motor+Driver Kit 60ST-M01330 1.26Nm 220vAC 3000r/min NEMA24 60mm for Textile Machinery with 2 years Warranty. Now USD ~ USD /piece. Dont waste your time. Buy Now only in ToAuto FASTT0BUY Commerce (Shenzhen) Store Trusted Seller Store!
400w CNC AC Servo Motor Kit 60ST-M01330 1.26Nm 220v 3000r/min NEMA24 60mm for Textile Machinery with 2 years Warranty
200W 60mm NEMA24 CNC Servo Motor and Driver AC 60ST-M00630 0.64Nm 220V 3000r/min for CNC Machining with 2 Years Warranty

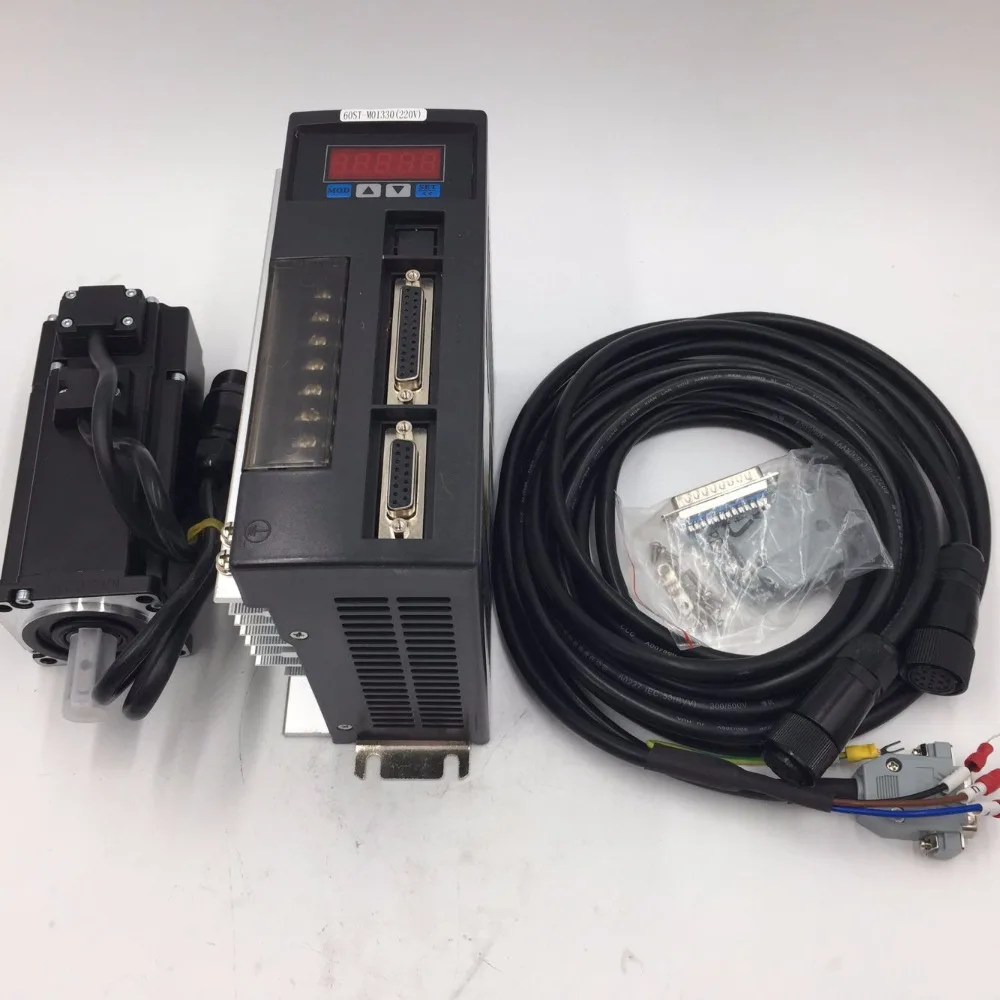

Shipping list
1. 1 kit *Motor+ Drive
2. 1*3M Encoder Cable
3. 1* 3M Power CableApplication Fields
Advantages
1. Compared with other brands of servo motors, our with obvious price advantage.
2.Compared with traditional stepper motors, this AC servo system realizes closed-loop control of position,speed and torque,which overcomes the step-out problem of stepping motors.
3.This product is generally rated speed can reach 2000 ~ 3000 rpm, with superior high-speed performance.
4. It can withstand three times the rated torque load, especially suitable for occasional load fluctuations and requires a quick start.
5. The low-speed operation is smooth, and the stepping operation similar to the stepping motor is not generated when the low-speed operation is performed.
6..The corresponding time of dynamic acceleration and deceleration of the motor is short, generally within tens of milliseconds, suitable for occasions with high-speed response requirements.
The function of AC servo motor driver
| The input power | Single phase or three phase AC220V -15~+1,0%50/60Hz | |
| Control mode | IGBT PWM sine wave control | |
| Control mode | Torque mode (internal or external) speed mode (internal or external) Position mode (internal or external) Position/velocity model Position/torque model, Speed/torque model | |
| Control feature | Speed frequency response | <400HZ |
| speed fluctuation ratio | <plusminus0.3(load0~100%);<plusminus0.2(power supply-15+10%) (Value corresponding to the rated speed) | |
| Speed ratio | 1:5000 | |
| Impulse frequency | ≤ 500KHZ | |
| The encoder feedback | 2500line incremental encoder, 10000ppr, differential output | |
| Communication mode | RS-232 RS-485 RS-232 OR RS-485(if need this function, there will be an extra $80 add to this product link) | |
| Display and operation | five LED display Four buttons | |
| Braking way | Through the internal ,external braking resistance braking energy | |
| Cooling way | Air cooled (heat transfer film , the strong cold wind fan) | |
| Power range | ≤7.5KW | |
Note :
The driver does not have a MODBUS serial port by default.,Please contact us in advance if necessary.
It with RS-232 or RS-485 communications.
Or, please click "" pay for $80. Please leave a message about the MODBUS you need.
Thank you!
Specifications
| Motor Model | 60ST-M00630A | 60ST-M01330A | |
| Rated Power(KW) | 0.2 | 0.4 | |
| Rated voltage(V) | 220 | 220 | |
| Cated current(A) | 1.4 | 2.5 | |
| Rated speed(rpm) | 3000 | 3000 | |
| Rated torque(N.m) | 0.637 | 1.27 | |
| Peak torque(N.m) | 1.91 | 3.9 | |
| Voltage constant(V/1000r/min) | 32.4 | 31.4 | |
| Torque coefficient(N.m/A) | 0.45 | 0.5 | |
| Rotor inertia (kg.m2) | 0.175*10-4 | 0.29*10-4 | |
| Line-Line Resistance( Ω) | 6.8 | 2.6 | |
| Line-Line Inductance(mH) | 30 | 15 | |
| Electrical time constant(MS) | 4.4 | 5.77 | |
| Weight(Kg) | 1.2 | 1.68 | |
| Encoder line number(PPR) | 2500 (TAMAGAWA increment type Encoder) | ||
| Insulation Class | Class B 130 (degree centigrade) | ||
| Safety Class | IP64 | ||
| Size(L) | 111 | 135 | |
Dimension
Application Fields
CNC Machining Equipment, Food processing machine, Material conveying
Equipment, , Textile Machinery and so on.
Product Photos
Related available NEMA 24 60mm servo motor planetary reducers:
| Model | Ratio | Arcmim | Input Flange | Input Shaft Size | Output Bore Size | Stage | Link |
| PLF60-5 | 5:1 | <8 | NEMA 24 | 14mm | 14mm | 1 | |
| PLF60-10 | 10:1 | <8 | NEMA 24 | 14mm | 14mm | 1 | |
| PLF60-20 | 20:1 | <10 | NEMA 24 | 14mm | 14mm | 2 | |
| PLF60-25 | 25:1 | <10 | NEMA 24 | 14mm | 14mm | 2 | |
| PLF60-35 | 35:1 | <10 | NEMA 24 | 14mm | 14mm | 2 | |
| PLF60-40 | 40:1 | <10 | NEMA 24 | 14mm | 14mm | 2 | |
| PLF60-50 | 50:1 | <10 | NEMA 24 | 14mm | 14mm | 2 | |
| PLF60-80 | 80:1 | <12 | NEMA 24 | 14mm | 14mm | 3 | |
| PLF60-100 | 100:1 | <12 | NEMA 24 | 14mm | 14mm | 3 | |
| AF60-5 | 5:1 | <3 | NEMA 24 | 14mm | 14mm | 1 |
Dear customer, if your voltage is 380V, but you want to try our 220V servo drive, you can solve this problem easily by choosing a 380V to 220V servo drive power supply transformer below:
| Model | Voltage | Application | Link |
| SVC-010-A | 3PH 380V to 220V | Power Supply for 1KW Servo Drive | |
| SVC-015-A | 3PH 380V to 220V | Power Supply for 1.5KW Servo Drive | |
| SVC-020-A | 3PH 380V to 220V | Power Supply for 2KW Servo Drive | |
| SVC-030-A | 3PH 380V to 220V | Power Supply for 3KW Servo Drive | |
| SVC-040-A | 3PH 380V to 220V | Power Supply for 4KW Servo Drive | |
| SVC-050-A | 3PH 380V to 220V | Power Supply for 5KW Servo Drive | |
| SVC-060-A | 3PH 380V to 220V | Power Supply for 6KW Servo Drive | |
| SVC-070-B | 3PH 380V to 220V | Power Supply for 7KW Servo Drive | |
| SVC-080-B | 3PH 380V to 220V | Power Supply for 8KW Servo Drive | |
| SVC-090-B | 3PH 380V to 220V | Power Supply for 9KW Servo Drive | |
| SVC-100-B | 3PH 380V to 220V | Power Supply for 10KW Servo Drive | |
| SVC-120-B | 3PH 380V to 220V | Power Supply for 12KW Servo Drive | |
| SVC-150-B | 3PH 380V to 220V | Power Supply for 15KW Servo Drive |
Dear costomers:
Thank you for choose our store.
Please leave us your email in the message when you place an order,
we\'ll send the manual , parameters.
or some emergency situations, we\'ll contact you at once.
Thank you!
Working time: EST 9:00am ~ 6:00pm
