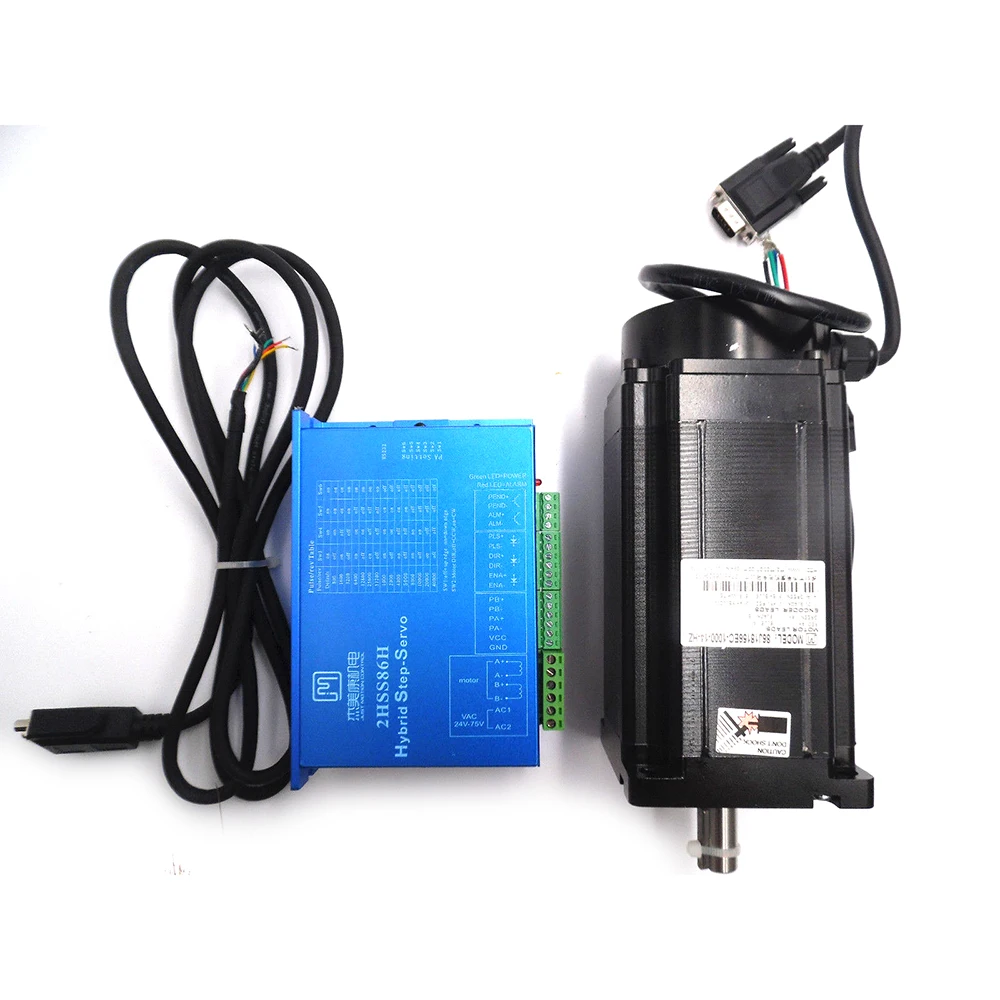

86J1880EC-1000+2HSS86H 2 Phase 86mm NEMA34 4.5NM 4A Closed Loop Stepper Motor+Drive Kit for Engraving Cutting Machine


The Best Seller Machine Product provide Super Cheap 86J1880EC-1000+2HSS86H 2 Phase 86mm NEMA34 4.5NM 4A Closed Loop Stepper Motor+Drive Kit for Engraving Cutting Machine. Now USD ~ USD /piece. Dont waste your time. Buy Now only in ToAuto FASTT0BUY Commerce (Shenzhen) Store Trusted Seller Store!

86J1880EC-1000+2HSS86H 2 Phase 86mm NEMA34 4.5NM 4A Closed Loop Stepper Motor+Drive Kit for Engraving Cutting Machine

Model:

86J1880EC-1000+2HSS86H

Packing list:

1pc* 86J1880EC-1000 Stepper motor

1pc* 2HSS86H Stepper Drive

Main application fields

Advertising industry, Engraving, packaging, lasers, electron industry, medical industry, Printing industry, woodworking, machinery industry, Ceramic Industry, stone industry and so on.

Brief introduction

2HSS two phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop,speed loop and position loop.This product has the advantage of both step and servo system, is a highly cost-effective motion control products.

characteristic

1. Full closed loop control, motor encoder with 1000 line, close to 100% of the torque output

2. Segment set range is 2-256, fast response, high speed, light isolation fault alarm output interface ALM

3. Current loop bandwidth (-3 db) 2 KHZ (typical), speed loop bandwidth 500 hz (typical), the position loop bandwidth 200 hz (typical)

4. RS232 serial port communication available to download or change parameters; Over-current, over-voltage, undervoltage, overheating, speeding, differential protection; Alarm clear input ENA

Drive specification

Model

Current

Voltage

Matched motor

Weight

Dimension

Control signal

2HSS57

0-6A

DC(24-48V)

57.86mm

0.27kg

118*75.5*34

Differential

2HSS86

0-6A

DC(24-80V)

57.86mm

0.57kg

150*97.5*53

Differential

2HSS86H

0-7A

DC(40-110V)

57.86.110mm

0.60kg

150*97.5*53

Differential

AC(60-80V)

2HSS1108H

0-8A

AC(80-220V)

86.110mm

1.50kg

181*140*70

Differential

2HSS2208H

0-8A

AC(110-240V)

110.130mm

1.50kg

181*140*70

Differential

Motor specification

model

Step Angle

Holding Torque

Current/

Phase

Resis

Tance/ Phase

Inductance/Phase

Detent Torque

Rotor Inetria

57J1854EC-1000

1.8

0.9NM

2.8A

0.4

1.2

400

280

57J1880EC-1000

1.8

2.2NM

4A

0.35

1.8

700

480

86J1880EC-1000

1.8

4.5NM

4A

0.4

3.5

1300

1400

86J1895EC-1000

1.8

7NM

5A

0.37

3.3

2000

1850

86J18118EC-1000

1.8

8.5NM

5A

0.44

4.4

2500

2700

Reral Photos

Related planetary gear reducer for NEMA34 86mm stepper motor:

Model

Ratio

Precision

Application

Link

86PX-6

6:1

High Precision

for NEMA34 Stepper Motor

86PX-10

10:1

High Precision

for NEMA34 Stepper Motor

86PX-30

30:1

High Torque

for NEMA34 Stepper Motor
