The Best Seller Machine Product provide Fast Gift New Automatic Arc and Cap Voltage 220V Input Plasma Torch Height Controller for CNC Plasma Cutter Cutting Machine THC SH-HC31. Now USD ~ USD /piece. Dont waste your time. Buy Now only in ToAuto FASTT0BUY Commerce (Shenzhen) Store Trusted Seller Store!
New DC24V Automatic Arc Voltage Plasma Torch Height Controller For CNC Flame & Plasma Cutting Machine
Please leave us your email, We\'ll send the manual to you.
1. Main Technical Parameters
| Trade name | flame / plasma cutting torch height controller |
| Power Requirements | DC 24V ± 2 V 220V 3 A |
| Applicable motor | 17 / 23 Nema series of stepper motors |
| Manual adjustment range | 0 ~ 100 mm |
| Automatic increase of control range | 3 ~ 30 mm |
| Automatic increase of control | 3000 mm / min (30 ° slope) |
| Control precision | ±0.5 mm |
| Dimensions of box body | (155 × 87 × 71) mm |
| Operating temperature | -10 ~ 50 degree centigrade |
| Detection system | capacitance-type detector, arc voltage height detector |
| communication interface |
2. Technical Features
| 1 | Stepper motor instead of the traditional DC motor |
| 2 | The height of cutting nozzle is displayed directly in the mode of |
| 3 | Integration of mechanical lifting device and height controller |
| 4 | All Digital Technology |
| 5 | Simple and convenient linearization calibration |
| 6 | It can be used in tough environment |
| 7 | There are various interfaces that are easy to use |
| 8 | RS232 communication interface |

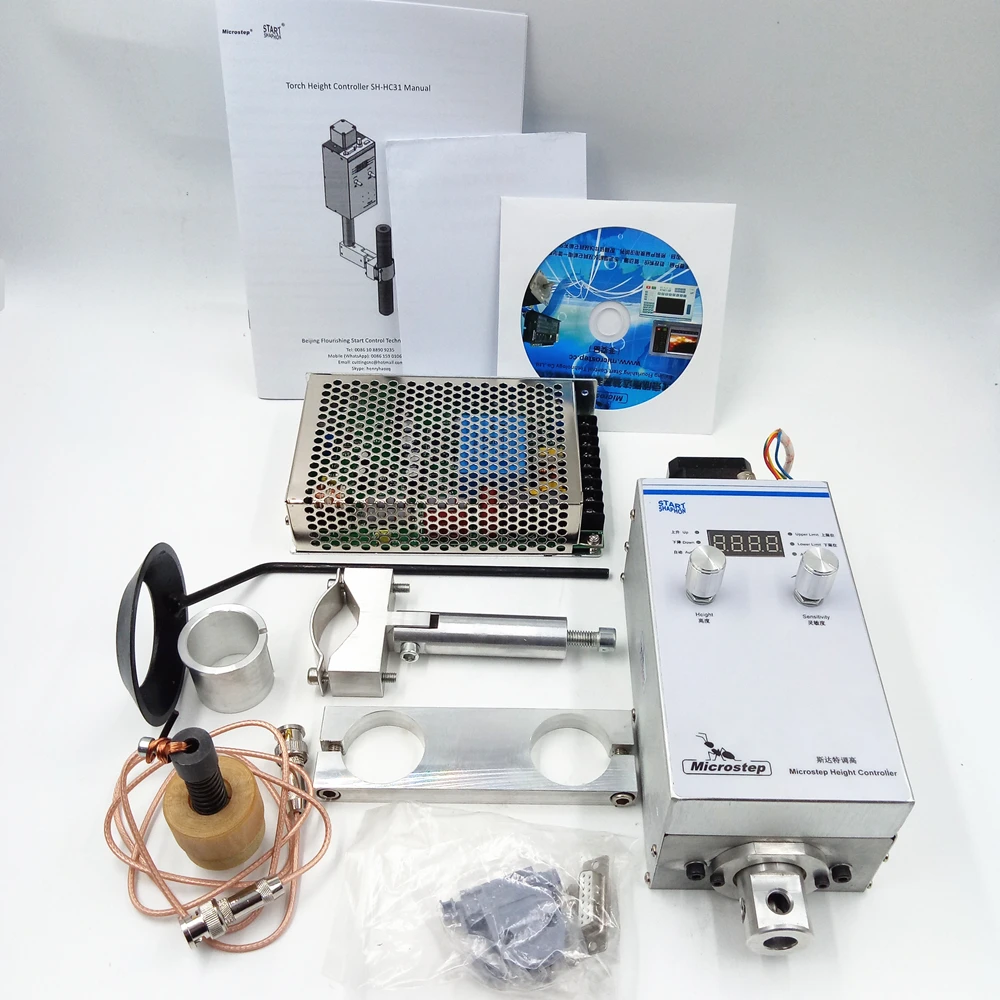

3. Package list
| quantity | Category |
| 1 | SH-HC31 |
| 1 | Lift stepper |
| 1 | Detector ring |
| 1 | Detector ring holder |
| 2 | Cutting torch holder |
| 1 | Standard high frequency cable |
| 1 | Partial pressure box |
| 1 | Detector ring anti-impact device |
| 1 | CD |
4. Mechanical Installation
SH-HC30 is the automatic control module for cutting torch height with the integration of mechanical increase and electric control specially designed for portable flame and plasma cutting machine.
6. Photos
Dear costomers:
Thank you for choose our store.
Please leave us your email in the message when you place an order,
we\'ll send the manual , parameters.
or some emergency situations, we\'ll contact you at once.
Thank you!
Working time: EST 9:00am ~ 6:00pm
