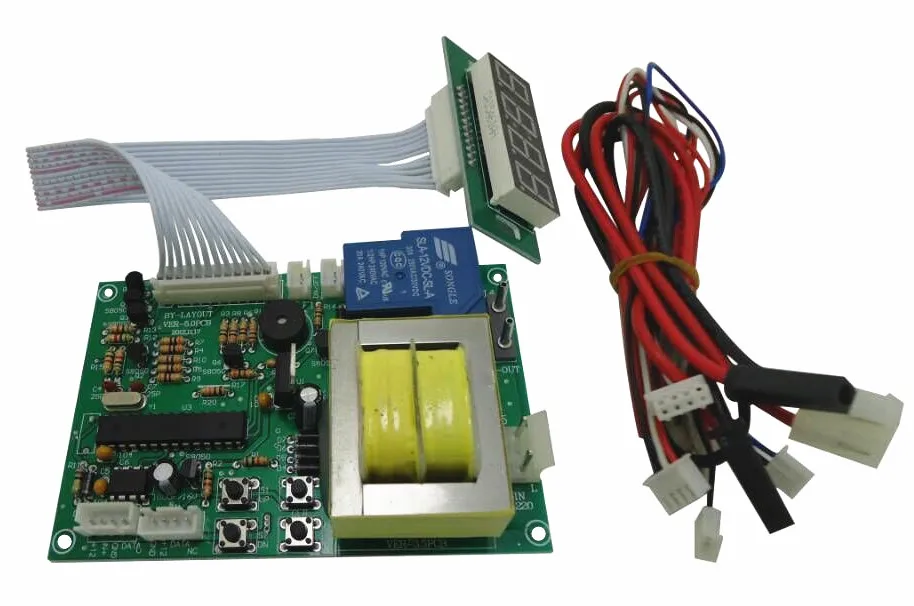

The Best Seller Machine Product provide Fast Promotion 110V coin operated Timer board Timer Control Board Power Supply with coin acceptor selector for washing machine. Now USD ~ USD /piece. Dont waste your time. Buy Now only in JY_JUYAO Store Trusted Seller Store!
This auction is for 110V input and output
- Free to set up time, value, given time, time for warning sound, and coin mode.
- AC 1250W DC 500Watt electrical relay capacity.
- Controls electrical devices ( TV, Massage chair..) power.
Setting
GIVEN TIME and VALUE: User can get extra free time when the amount reach the value you have set up during the working time.
---------------------------------------------------------------------------------------------------------------------
If the function of GIVEN TIME is not needed, please skip step 5-step 7 by press button S4.
- Please press button "S4", and then please use button "S1" and button "S2" to set up VALUE
- Please press button "S4", and then use button "S1" and "S2" to set up TIME for FIRST 2 NUMBER (00:--
- Please press button "S4", and then use button "S1" and "S2" to set up TIME for LAST 2 NUMBER (--:00
- Please press button "S4", and then use button "S1" and "S2" to set up VALUE OF GIVEN TIME
- Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for FIRST 2 NUMBER (00:--
- Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for LAST 2 NUMBER. (--:00
- Please press button "S4". Use button "S1" and "S2" to set up TIME for WARNING SOUND
Default is 30 seconds
Mode Setting
1. Please hold on button "S1" and "S2" to get into MODE SETTING.
2. Please use button "S1" and button "S2" to set up CODE for FIRST MODE.
3. Please press button "S4" after setting.
4. Please repeat step 2 and step 3 for setting rest mode.
Code Introduction
Operating Mode
01:01: Time counts down without pressing button
01:02: Time counts down by pressing button
TIME TYPE
02:03: MINUTE: SECOND
02:04: HOUR: MINUTE
-----------------------------------------------------------------------------------------------------------------
MEMORY MODE
03:05: Continue counting time after power off and on
03:06: Reset time and value after power off and on
-----------------------------------------------------------------------------------------------------------------
TIME for RESET AUTOMATICALLY
04:??: 1-30 minutes are adjustable.
Description: Time and value will be reset automatically if user does not choose any function after the
user inserts coins.
DEFAULT
Operating Mode: 01:01 Time Type: 02:03 Memory Mode: 03:06
Connection
1: Connect to coin acceptor or bill acceptor:
RED:+DC12V WHITE: signal input BLACK: GND BLUE: counter
2: Connect to counter:
BLACK: GND RED:+DC12V
WHITE: signal output
3: Input power: neutral and live of to power supply
4: Output power: neutral and live of to device
5: Display for time and setting
6: Button STOP/START
7: Button START for operating model:01:02
Note: Voltage for No.3 and No.4 IS 110V
Voltage Checking
TO COIN ACCEPTOR:
TO COUNTER
FOR PAUSING
Main board
Display
