The Best Seller Machine Product provide 2018 Deals High-precision 1.5KW 4 Axis 3040 CNC Engraving Router Machine Table 110V/220V AC with 1500W VFD Inverter and LCD #SM712 @SD. Now USD ~ USD /piece. Dont waste your time. Buy Now only in MartAtHome Store Trusted Seller Store!
Outline:

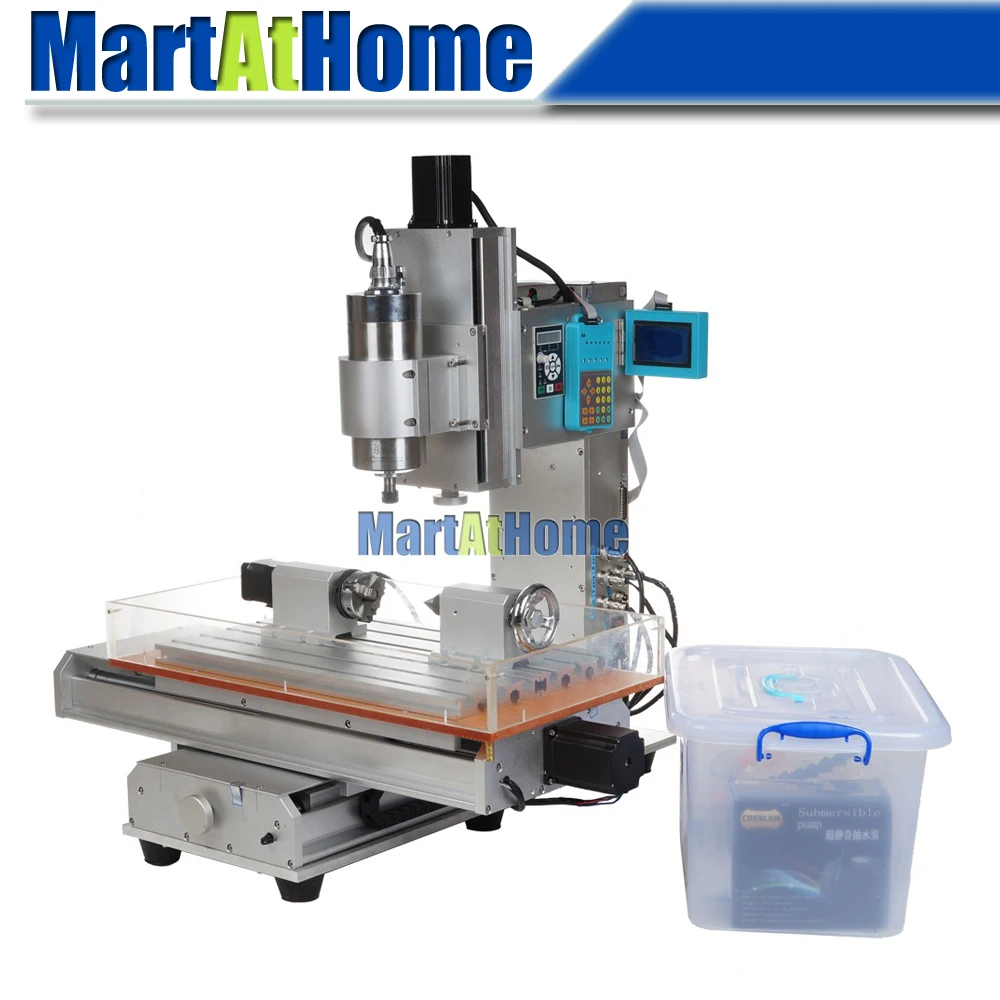

This 4 Axis CNC router has an 1.5KWW spindle motor and 1.5KW VFD. It can work for wood engraving, metal engraving well. It could work with Mach3, EMC2, KCAM4.
Package included:
- 1 x 4 Axis 3040 CNC Engraving Machine (Please choose the 4th Axis: L-type Rotary Axis, F-type Rotary Axis)
- 1 x Water-Cooled System
- 1 x CD (Manual, Mach3 with license)
- 1 x Tool Box
| When you purchase, please let me know which voltage and power plug you need. | ||
| Power Input Voltage | 220V AC | 110V AC |
| Power Cable Plug | EU plug | US plug |
Product parameters:
1. Product Dimensions height 520 * 660 * length width 580 (MM)
2. Effective stroke 300 * 400 * (150) (MM)
3.1605 precision ball screws
4. XY rail diameter 20 plus hard chrome shaft diameter 16 Z-axis rail and hard chrome shaft.
5. XYZ 3 axis stepper are 57 * 78 250 OZ / IN (2.2N/CM)
6. Repeat positioning accuracy 0.01mm, precision 0.02MM
7. Processing speed 0-4000MM / minute
8. Maximum table load 50KG
9. Stainless steel tailgate
10. Integrated 24V350W Switching Power Supply
11.1500 W water-cooled frequency spindle Industry (ER11-A Collet nut).
12. 1500 W Industrial spindle drive
13. Professional 4 axis driver board, with LCD digital display and handle, offline programming and path manually duplicate records offline processing
14. 4th axis and 5th axis motor is 57 * 56 stepper motor, the transmission ratio is 1:6
Features:
1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control
2. The computer keeps track of the path; you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.
3. Manually move the processing to save recorded track record manually move the machine data and automatically reprocessed run manually move the path.
4. Manual data input processing path and enter the path to run automatically
5. You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control
6. Max 5A stepper motor drive current, eight-speed adjustable.
7. Up to 16 segments, higher accuracy, run more smoothly.
8. Overload over-current over-temperature protection function, automatic semi-flow control; fully protect your computer and peripherals
9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.
10. closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.
Electrical properties (ambient temperature Tj = 25 Celsius)
| Input Power | 110/220V AC power supply (Please let me know which one you need) |
| Output Current | Drive 4.5A (peak 5A) |
| Driven approach | Bipolar constant current PWM drive output. |
| Drive motor | 57 * 78 stepper motors, 2-phase 4 wire stepper motor) |
| Weight | About 98KG |
Microstep resolution table.
Signal waveform and timing
Power output interface functions
Breakdown of the interface labeled
Operating Instructions.
