The Best Seller Machine Product provide Hurry! Special USB 2MHz Mach4 CNC 4 Axis Motion Control Card Breakout Board MK4-M4 for Lathes, Machine Centre, CNC Engraving Machine #SM781 @SD. Now USD ~ USD /piece. Dont waste your time. Buy Now only in MartAtHome Store Trusted Seller Store!

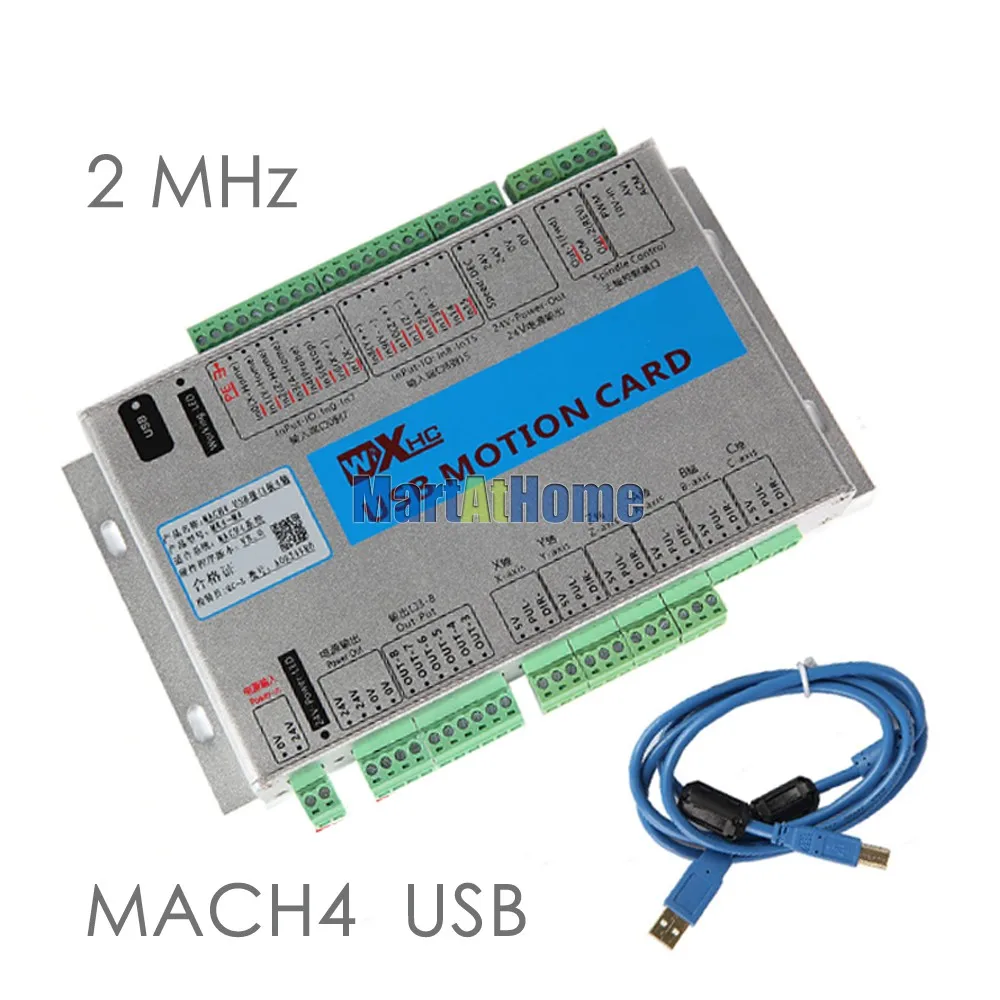

USB 2MHz Mach4 CNC 4 Axis Motion Control Card Breakout Board for Machine Centre, CNC Engraving Machine
Mach4 is our newest version of CNC motion control software.
- Running up to 6 axis machines
- Operating: Mills, Routers, & Lathes
- Beta testing: 3d printers, water jets, and tangential cutters
Note: we don\'t offer Mach4 software. If you need it, you could purchase through mach software\'s site as follow:
I. Description:
This is the latest generation 4 axis motion control card, It could work under Mach4 software. The maximum step-pulse frequency is 2000 KHz.
II. Package Contents:
1 x CNC Mach3 USB 4 Axis Motion Control Card
1 x USB Cable
1 x English Manual
1 x CD
III. Features:
1.Dual-Processors, ARM+FPGA, More processing power
2.Support all versions of Mach4.
3.Work under Windows 32-bit and 64-bit operating system (not including Mac OS)
4.Support spindle speed feedback function.
5.USB jack does not need to install the driver, plug and play under all versions of Windows.
6.Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach4 working state, USB cable unplugs and then plugs in, but also the normal connection.
7.Supports 4-axis linkage.
8.Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.
9.The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.
10.16 input IO, 8 output IO, Supports extended I / O control.
11.Onboard isolated power supply, not need external power supply.
12.All IO port fully isolated, strong anti-interference, stable performance.
13.Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.
14.Support XHC series of wireless electronic Mach4 MPG, such as WHB04B-4-M4 MPG.
15.With an aluminum shell, effectively shielding interference, stable and reliable performance.
IV. Application Connection Diagram:
V. Signal Description:
VI. Wiring Instruction:
