DIY CNC A Rotary Axis 4th Axis L-type for CNC Router, CNC Engraving Milling Machine #SM621 @SD

The Best Seller Machine Product provide Hot Flash Deal DIY CNC A Rotary Axis 4th Axis L-type for CNC Router, CNC Engraving Milling Machine #SM621 @SD. Now USD ~ USD /piece. Dont waste your time. Buy Now only in MartAtHome Store Trusted Seller Store!

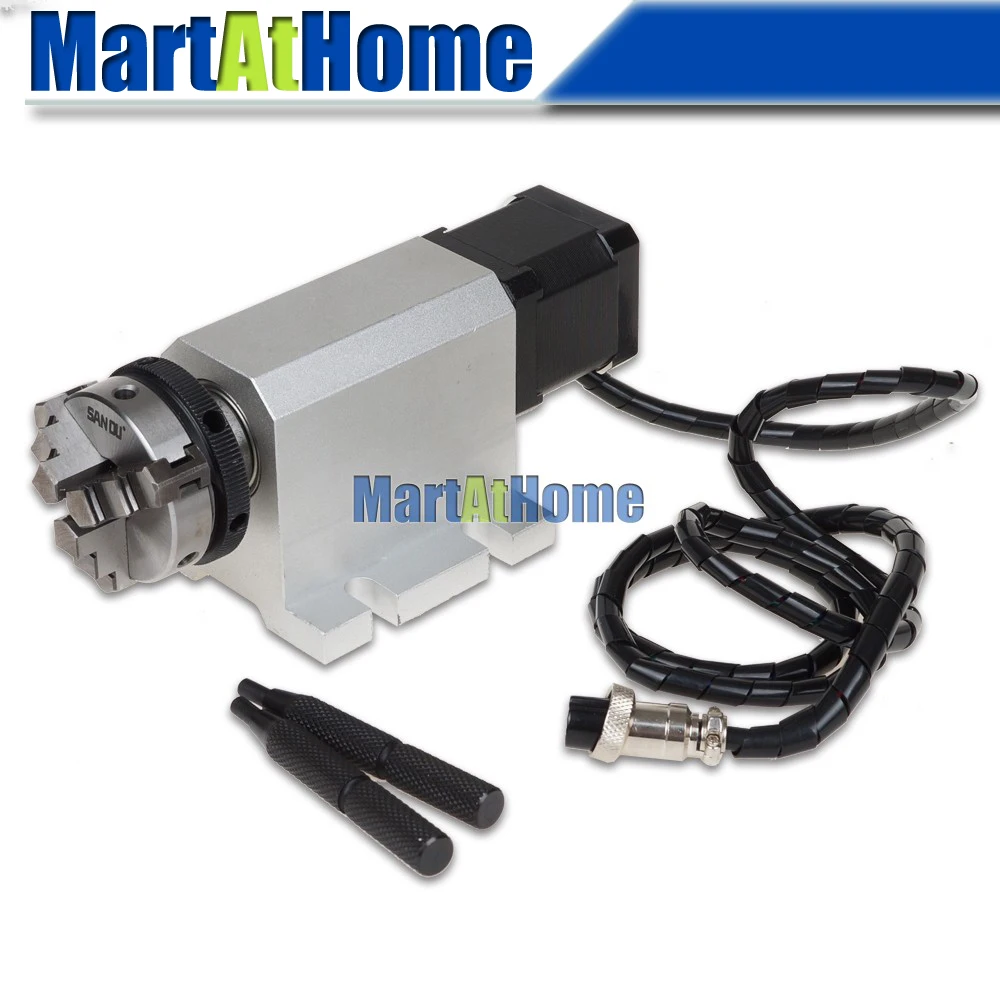

DIY CNC A Rotary Axis 4th Axis L-type 50MM Jaw for CNC Router, CNC Engraving Milling Machine Package included: 1 x CNC Router Rotary Axis A L-type ( Not including the chuck) If you need CNC Tailstock Chuck 80mm, you can purchase from our store or contact me. Purchase Tailstock Chuck 80mm here: Parameters: 1. Dimensions: 180 * 75 * 75MM 2. Diameter 50MM jaw self-centering card dribbling complete accessories 3. Chuck center height 49MM 4. Transmission ratio 1.6 (1200 pulses / revolution) synchronization gear reducer 5. The new line of 42 * 48 thick 1.5A4 large torque stepper motor 6. Stainless steel dust cover 7. Product gross weight 3KG 8. Processing load 5KG 9. Appearance anodized rust treatment 10. 4-pin aviation connector 1 = A +, 2 = A-, 3 = B +, 4 = B- MACH3 setup instructions: 1 degree required Pulse The formula is. 360 / subdivision stepping angle * Drive * Transmission ratio / 360 = MACH3 Pulse Electrical properties (ambient temperature Tj = 25 Celsius pm):

Input Power	24V DC power supply
Output Current	Driver 2A
Drive mode	Bipolar constant current PWM drive output.
Drive motor	42 * 48 stepper motors, two-phase 4-wire stepper motor)
Weight	About 3KG

Power output interface functions:

Details of the interface labeled diagram:
