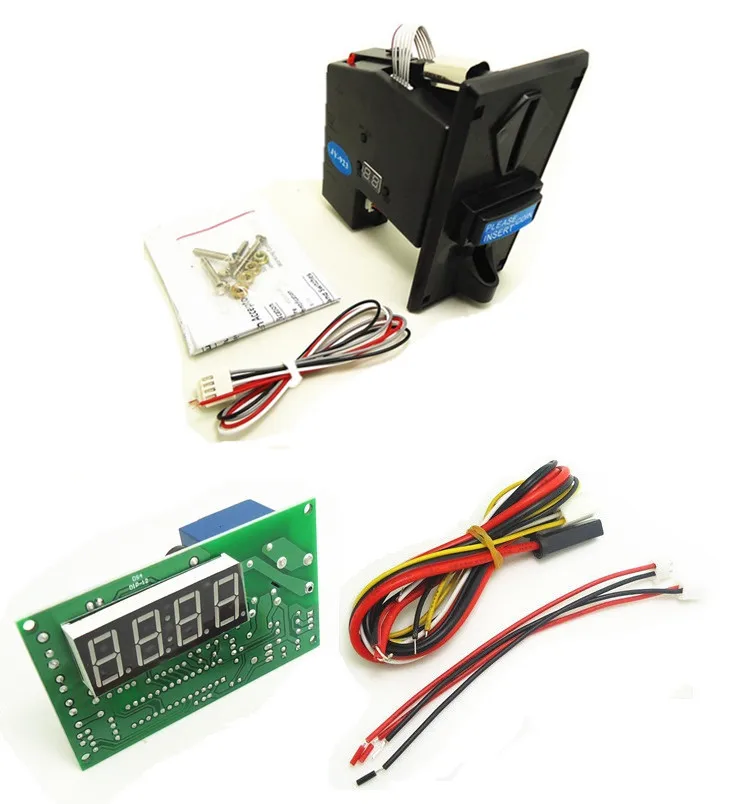

plastic front plate coin operated multi coin selector acceptor with JY-15A 4digits timer board for cafe kiosk ,washing machine

The Best Seller Machine Product provide Hot New plastic front plate coin operated multi coin selector acceptor with JY-15A 4digits timer board for cafe kiosk ,washing machine . Now USD ~ USD /piece. Dont waste your time. Buy Now only in JY_JUYAO Store Trusted Seller Store!

plastic front plate multi coin selector acceptor

• Intelligent CPU software control, and high accuracy
• Self-programming without PC, and automatic self-test for proble
• Accept different kinds of coins at the same time. Free to set up pulses\' output
• Prevent not only electric shock but also electromagnetic interference
• Support multi coins with only 1 signal output
• Capable of accepting all worldwide Coins and Token

CONNECTIONA AND SWITCHES

SETTING FOR COINS

1. Hold on the button"ADD" and the button "MINUS" simultaneously for seconds,then letter "A" will appear from the LED display.
2. Hold on the button "SET" for seconds, and letter "E" will appear. Next, use the button "ADD" and the button "MINUS" to choose how many kinds of coins you would like to use. Next, hold on the button "SET" for seconds to finish.
3. Letter "H1" will appear. Use the button "ADD" and the button "MINUS" to choose how many samples you would like to insert later. Next, hold on the button "SET" for seconds to finish.
   The maximum is 30. Please choose more than 15 samples for more accurate.
4. Letter "P1" will appear. Use the button "ADD" and the button "MINUS" to choose the amount of output\'s signals/pulses for coins. Next, hold on the button "SET" for seconds to finish.
   The maximum pulse is 50.
5. Letter "F1" will appear. Use the button "ADD" and the button "MINUS" to choose accuracy. Next, hold on the button "SET" for seconds to finish.
   The value is from 1 to 30, and 1 is the most accurate. Normally,5-10 is fine. If kinds of coins are too similar, the value should be more accurate.
6. The first kind of coin has been set up so far. Please repeat No.3- No.5 until all kinds of coins has been set up. Letter "A" will appear again after all above procedures is finished.
7. Hold on the button " SET" for seconds, and letter "E" will appear. Finally, turn off and turn on the power. The setting will be saved.

Sampling FOR COINS

You can start sampling after the setting is finished. Please choose more than 15 coins. The sampling will affect the accuracy of coin selector.

----------------------------------------------------------------------------------------------------

1. Hold on the button "SET" for seconds, then letter "A1" will appear from the LED display.
2. Please start to sample the first kind of coins. The letter "A1" will appear again after finished.
3. Hold on the button "SET" for seconds, then letter "A2" will appear. Next, please start to sample second kind of coins. The letter "A2" will appear again after finished.
4. Please repeat No.3 until all kinds of coins you need is set up.
   If you already set up all kinds of coins you need, and it is less than the product has, please turn off power. For example: If you choose "6-kind-of-coin of multi-coin selector" to set up 4 types of coins, please turn off power after you see second “A4”.
5. The system will restart automatically after finished.
6. The product can be used after finishing sampling.

AP MODE

• Using this mode, you are able to control the output pulse ratios.
  For example: 2 coins for 1 pulse or 3 coins for 1 pulse.
• If you don\'t need to use AP mode, please skip AP mode setting.
  -----------------------------------------------------------------------------------------------

SETTING FOR AP MODE

1. Please hold on the button "SET" and the button "ADD" simultaneously for seconds, then hold on the button "SET" for seconds to get into AP mode
2. Please select the value of AP mode. The coin selector will generate 1 external signal output when the internal signal- "P" value of parameter- reaches the value
3. The default value of AP mode is 1.

• Please note this auction is for MODEL JY-92X OR JY-92XA
• For following coins, we can pre-program coins for you if order more than 10 pcs.

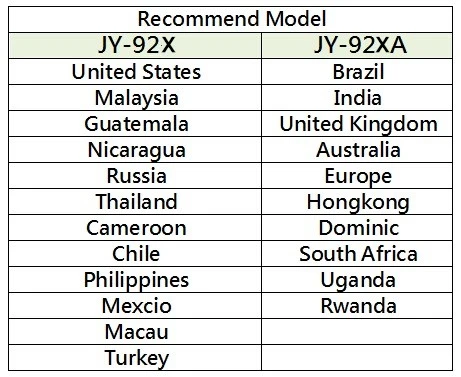

• Please check following TABLE for MODEL you will receive

• Other currancy, please feel free to contact us or we pick up to you based on country.

JY-15A

• Size:54.3 mm × 94.0 m
• Free to set up time, value, given time, time for warning sound, and coin mode.
• AC 1250W DC 500Watt electrical relay capacity.
• Controls electrical devices ( TV, Massage chair..) power.

Connection

1: Display

2:Output-connect to your device

3: AC jack-5.5mm*2.1mm

4: YELLOW: DC12V, WHITE: input signal, BLACK: GND

5: Push button for coin mode 01:02

6: Pausing

7-10: Button S2, S1, S3, and S4

NOTE: Free to connect DC12V to either No. 3 or No.4.

Setting

GIVEN TIME and VALUE: User can get extra free time when the amount reach the value you have set up during the working time.

---------------------------------------------------------------------------------------------------------------------

If the function of GIVEN TIME is not needed, please skip step 5-step 7 by press button S4.

1. Please press button "S4", and then please use button "S1" and button "S2" to set up VALUE
2. Please press button "S4", and then use button "S1" and "S2" to set up TIME for FIRST 2 NUMBER (00:--
3. Please press button "S4", and then use button "S1" and "S2" to set up TIME for LAST 2 NUMBER (--:00
4. Please press button "S4", and then use button "S1" and "S2" to set up VALUE OF GIVEN TIME
5. Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for FIRST 2 NUMBER (00:--
6. Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for LAST 2 NUMBER. (--:00
7. Please press button "S4". Use button "S1" and "S2" to set up TIME for WARNING SOUND
   Default is 30 seconds

Mode Setting

1. Please hold on button "S1" and "S2" to get into MODE SETTING.

2. Please use button "S1" and button "S2" to set up CODE for FIRST MODE.

3. Please press button "S4" after setting.

4. Please repeat step 2 and step 3 for setting rest mode.

Code Introduction

Operating Mode

01:01: Time counts down without pressing button

01:02: Time counts down by pressing button

TIME TYPE

02:03: MINUTE: SECOND

02:04: HOUR: MINUTE

-----------------------------------------------------------------------------------------------------------------

MEMORY MODE

03:05: Continue counting time after power off and on

03:06: Reset time and value after power off and on

-----------------------------------------------------------------------------------------------------------------

TIME for RESET AUTOMATICALLY

04:??: 1-30 minutes are adjustable.

Description: Time and value will be reset automatically if user does not choose any function after the
user inserts coins.

DEFAULT

Operating Mode: 01:01 Time Type: 02:03 Memory Mode: 03:06

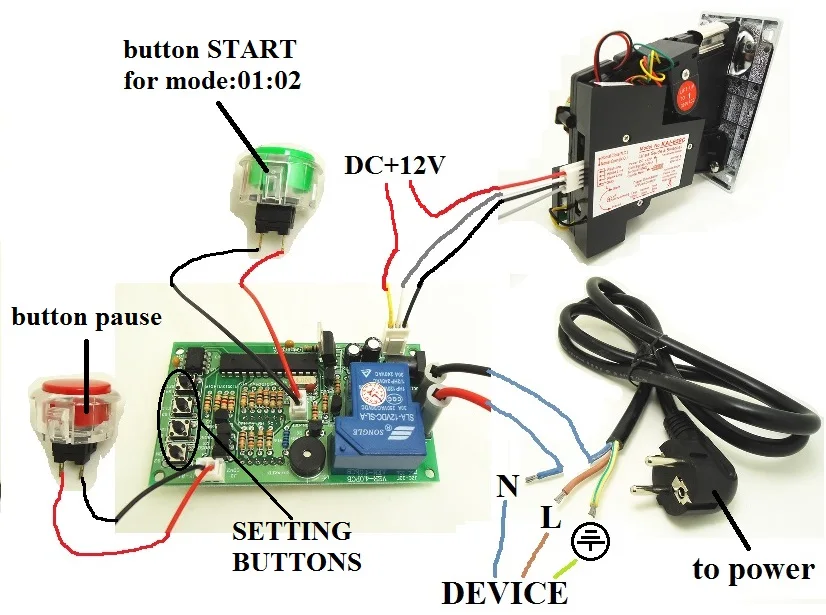

SAMPLE FOR CONNECTION
