with coin changing Time Control Timer Board Power Supply for coin acceptor selector, pump water, washing machine, massage chair

The Best Seller Machine Product provide Fantastic Special with coin changing Time Control Timer Board Power Supply for coin acceptor selector, pump water, washing machine, massage chair. Now USD ~ USD /piece. Dont waste your time. Buy Now only in JY_JUYAO Store Trusted Seller Store!

• Free to connect Bill acceptor and coin acceptor or other device with pluse
• Free to set up time, value, given time, time for warning sound, and coin mode.
• AC 1250W DC 500Watt electrical relay capacity.
• Controls electrical devices ( TV, Massage chair..) power.
• Free to connect hopper for changing

Manual

PAGE-1

JY14-1 Timer Board with Balance Pay Out

Input Voltage	DC+12V
Standby	Display shows:00:00
Relay	Normal OPEN (NO), Max current load: 15A
Accumulated Time	Add time if receive signals/coins when time is running
How it works
Time Control	Display shows 00:00àinsert coinsà push button startàtime runs down, display shows remaining time, and supply power to deviceàit cuts off power after time runs out
Pause (connect a button)	Push button pause: it cuts off power when pause, display shows remaining time. Re-supply power after push button pause again
Warning sound	1-60 seconds adjustable
Balance Payout	Push button return, pay out balance.
	Able to return balance before or after use machine
Operating Mode	Please reference to page 3.
Connection Example	Please reference to page 4.
Given Time	Optional function, Please reference to page 2.

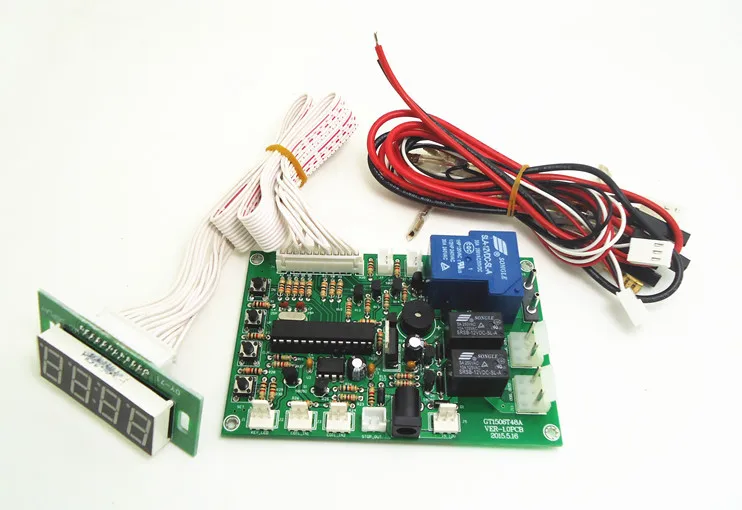

Connection and Position

1: Display 2: White lead 3: Button for START 4: Button for PAUSE

5: output- control your device by time

6: output for first hopper 7: output for second hopper

8: Input device:
YELLOW: DC12V, WHITE: input signal, BLACK: GND

9: AC jack-5.5mm*2.1mm

10: output 5V when first hopper (No.6) is not functional

11: Input for second hopper 12: Input for first hopper

13: button for balance payout: Red: 5V, White: signal, Black: GND

14-17: SETTING Button S4, S3, S2, and S1

Detailed Function

• Operating Mode 01:02: LED lights when balance is available for paying out.
  pay out coins by pushing button from No.13.
• The order for deducting balance: if No.6 and NO.7 are active, No.6 is the fisrt.
• Warning signature: If balance is available for changing and coins are not paid out after 10 seconds.
  - No. 10 output 5V and GND for LED sign.
  - Display shows --:E2
  - Warning sound for error until pushing button S3.
  Power off and on can not remove warning unless pushing button S3.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAGE-2

Setting

Please follow “A” and “B” on Display to set up.
1. Please press setting button "S1" or "S2" to adjust VALUE.
2. Please press button "S4" to switch next code or finish value setting.

A. “Input Signal/Coin Quantity”, “ Balance Pay Out”, and “Time”

1.Please press button "S4". “B” flashes.
Please set up INPUT SIGNAL QUANTITY to active device (01-50).

2.Please press button “S4”, “A” flashes. Please set up TIME (01-99).

3.Please press button "S4", “B” flashes. Please set up TIME (01-99).

4.Please press button “S4” 4 TIMES.

5.Please set up TIME for Warning Sound.

6.Please press button “S4”, “A” shows 01. Please set up SIGNAL COST for PAY OUT 1 COIN (No.6)

7.Please press button “S4”, “A” shows 01. Please set up SIGNAL COST for PAY OUT 1 COIN (No.7)

8.Please press button "S4" to finish.

Example for STEP 6 and STEP7-SIGNAL COST for PAY OUT 1 COIN:

If set up 01, deduct 1 credit from balance for per 1 coin pay out.

If set up 02, deduct 2 credit from balance for per 1 coin pay out.

If set up 03, deduct 3 credit from balance for per 1 coin pay out.

Optional Function-Given Time

GIVEN TIME: Add time by free if input signals reach SETTING RATE during time is running.
Example Setting: input signal to active device: 01, input signals for given time: 03 give time: 02:10
Add time “02:10” free if receive “3 signals” during time is running.

1.Please press button "S4" 4 TIMES. “B” flashes.
Please set up RATE OF INPUT SIGNAL QUANTITY.

2.Please press button "S4", “A” flashes. Please set up GIVEN TIME.

3.Please press button "S4", “B” flashes. Please set up GIVEN TIME.

4.Please press button "S3" to finish.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAGE-3

Operating Mode Setting

	Display: “A” shows CODE, B shows VALUE 1. Please hold on button "S1" and "S2" to get into MODE SETTING. 2. Please use button "S1" and button "S2" to set up VALUE 3. Please press button "S4" to switch next code or finish value setting.
CODE	VALUE	function	function
01	01	Start instantly	Time runs down after insert coins. Note: Function “Balance Pay Out” is not available.
	02	Start by pushing button	Time runs down after push button start.
02	03	MINUTE: SECOND	Max:99:59
	04	HOUR: MINUTE	Max:99:59. Time runs down by seconds for last minute.
03	05	memory	Runs down runs down after power off and on
	06	Non-memory	Standby after power off and on
04	1-30	Reset automatically	Standby if it has not received any action after setting time
Default: Bold and underline

Size

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

PAGE-4

Connection Example

No.6 or No.7		No.11 or No.12
No.8 - coin acceptor			No.8 - bill acceptor
No.10	No.3 or No.4			No.13
