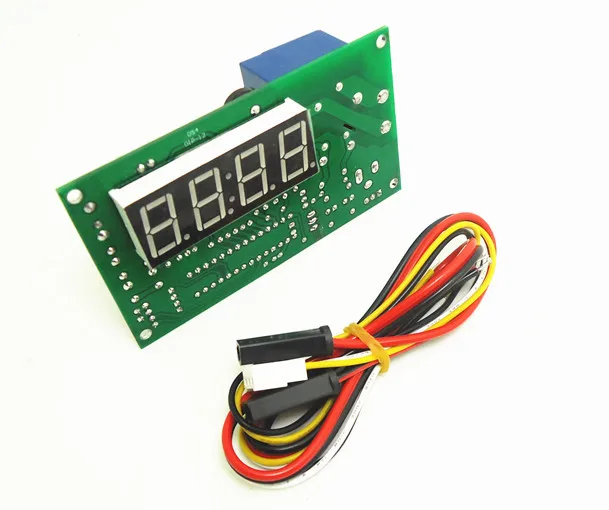

JY-15A Time Control Timer Board Power Supply for coin acceptor selector, pump water, washing machine, massage chair

The Best Seller Machine Product provide Great Sale JY-15A Time Control Timer Board Power Supply for coin acceptor selector, pump water, washing machine, massage chair. Now USD ~ USD /piece. Dont waste your time. Buy Now only in JY_JUYAO Store Trusted Seller Store!

• Size:54.3 mm × 94.0 m
• Free to set up time, value, given time, time for warning sound, and coin mode.
• AC 1250W DC 500Watt electrical relay capacity.
• Controls electrical devices ( TV, Massage chair..) power.

Connection

1: Display

2:Output-connect to your device

3: AC jack-5.5mm*2.1mm

4: YELLOW: DC12V, WHITE: input signal, BLACK: GND

5: Push button for coin mode 01:02

6: Pausing

7-10: Button S2, S1, S3, and S4

NOTE: Free to connect DC12V to either No. 3 or No.4.

Setting

GIVEN TIME and VALUE: User can get extra free time when the amount reach the value you have set up during the working time.

---------------------------------------------------------------------------------------------------------------------

If the function of GIVEN TIME is not needed, please skip step 5-step 7 by press button S4.

1. Please press button "S4", and then please use button "S1" and button "S2" to set up VALUE
2. Please press button "S4", and then use button "S1" and "S2" to set up TIME for FIRST 2 NUMBER (00:--
3. Please press button "S4", and then use button "S1" and "S2" to set up TIME for LAST 2 NUMBER (--:00
4. Please press button "S4", and then use button "S1" and "S2" to set up VALUE OF GIVEN TIME
5. Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for FIRST 2 NUMBER (00:--
6. Please press button "S4". Use button "S1" and "S2" to set up GIVEN TIME for LAST 2 NUMBER. (--:00
7. Please press button "S4". Use button "S1" and "S2" to set up TIME for WARNING SOUND
   Default is 30 seconds

Mode Setting

1. Please hold on button "S1" and "S2" to get into MODE SETTING.

2. Please use button "S1" and button "S2" to set up CODE for FIRST MODE.

3. Please press button "S4" after setting.

4. Please repeat step 2 and step 3 for setting rest mode.

Code Introduction

Operating Mode

01:01: Time counts down without pressing button

01:02: Time counts down by pressing button

TIME TYPE

02:03: MINUTE: SECOND

02:04: HOUR: MINUTE

-----------------------------------------------------------------------------------------------------------------

MEMORY MODE

03:05: Continue counting time after power off and on

03:06: Reset time and value after power off and on

-----------------------------------------------------------------------------------------------------------------

TIME for RESET AUTOMATICALLY

04:??: 1-30 minutes are adjustable.

Description: Time and value will be reset automatically if user does not choose any function after the
user inserts coins.

DEFAULT

Operating Mode: 01:01 Time Type: 02:03 Memory Mode: 03:06
