The Best Seller Machine Product provide Cool Sale CNC router spindle motor 0.8kw Air Cooled Spindle Motor ER11 800w DIY spindle for engraving milling grind Air Cooling 4 bearings. Now USD ~ USD /piece. Dont waste your time. Buy Now only in BEST Technology CO.,Ltd. Trusted Seller Store!

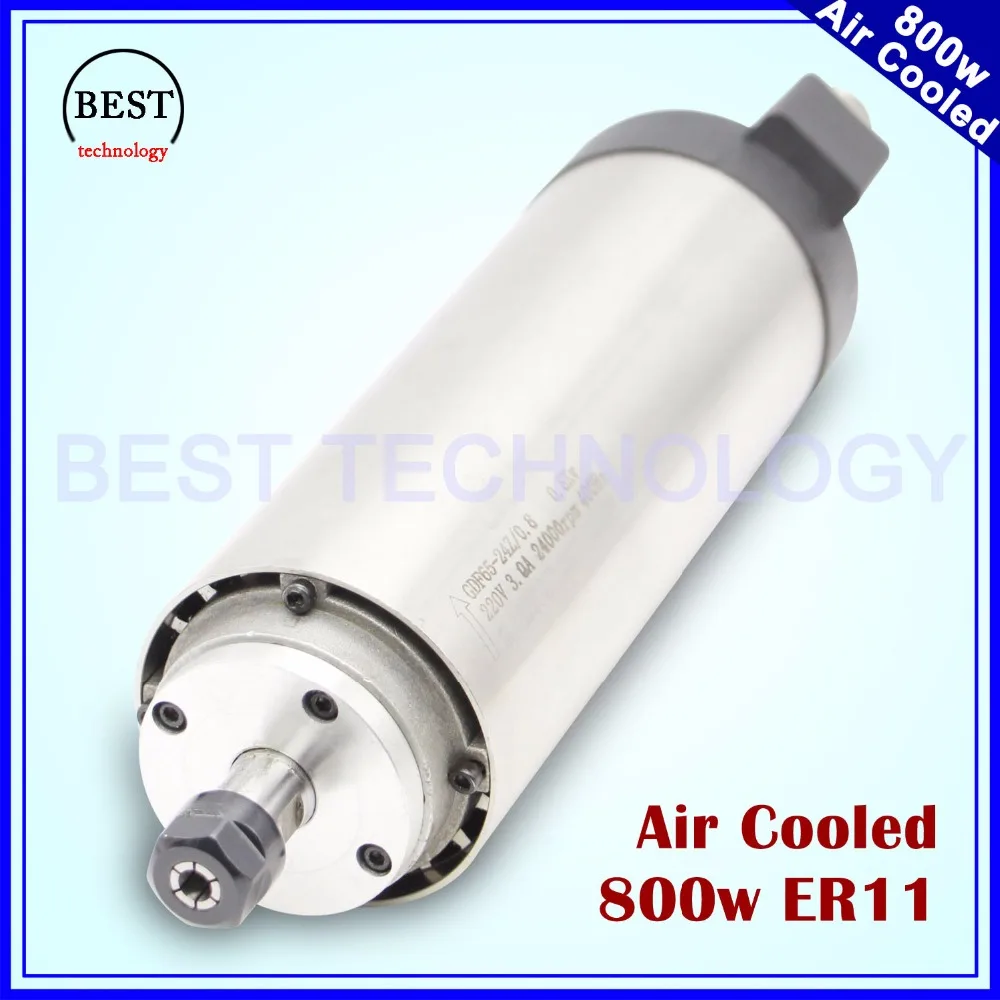

1 & 220v 0.8kw ER11 CNC Air Cooled Spindle Motor Precision 0.01
Basic parameters:
-
Size: 65x181.5mm ( Body diameter:65mm;Length:181.5mm)
-
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
-
Cooling: Air cooling
-
Power Interface: Optional H17-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
-
Power: 0.8kw (1HP=0.735kw)
-
Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
-
Current: 3A
-
Frequency: 0-400Hz
-
Speed: 0-24000rpm
-
Runout Off: 0.01mm (High accuracy)
-
Bearing Type:2X7002C P4 DT and 2X7000C P4 DT
-
Fully sealed angular contact bearings
-
Collet: ER11
-
Clip Knifediameter: 7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
-
Air Cooling ER11 collet chunk
-
Grease Lubrication
-
Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working. (Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don\'t use it for steel. If you need steel working,please check the metal spindle,thank you!)
-
Spindle working environment temperature is usually -10 ~ 40 .
-
Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
Use correctly
-
Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter\'s specifications and parameter settings need match spindles parameter.
-
Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
-
During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
-
Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
Care and maintenance:
-
Spindle frequency power supply connected rated voltage, frequency should be consistent with the technical parameters of the electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.
-
Spindle being not used,spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.
-
To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.
Advantage:
-
Bearing is P4 grade,2×7002C P4 DT &2×7000C P4 DT,increase spindle life.
-
High speed,high torque,low noise,low price.
-
High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mm.
-
Shipment within four days,there is no fake tracking number,make sure that you receive time.
-
We are the spindle manufacturer,we offer only best quality and best price to you.
Customer product display
Spindle engraving products show
Spindle production process
- Spindle from the production - assembly - test, and finally the perfect packaging .
- We will 100% guarantee security to the hands of the guests.
