XHC USB 2MHz Mach4 CNC 3 Axis Motion Control Card Breakout Board MK3-M4 for Machine Centre, CNC Engraving Machine #SM780 @SD

The Best Seller Machine Product provide Terrific Clearance XHC USB 2MHz Mach4 CNC 3 Axis Motion Control Card Breakout Board MK3-M4 for Machine Centre, CNC Engraving Machine #SM780 @SD. Now USD ~ USD /piece. Dont waste your time. Buy Now only in MartAtHome Store Trusted Seller Store!

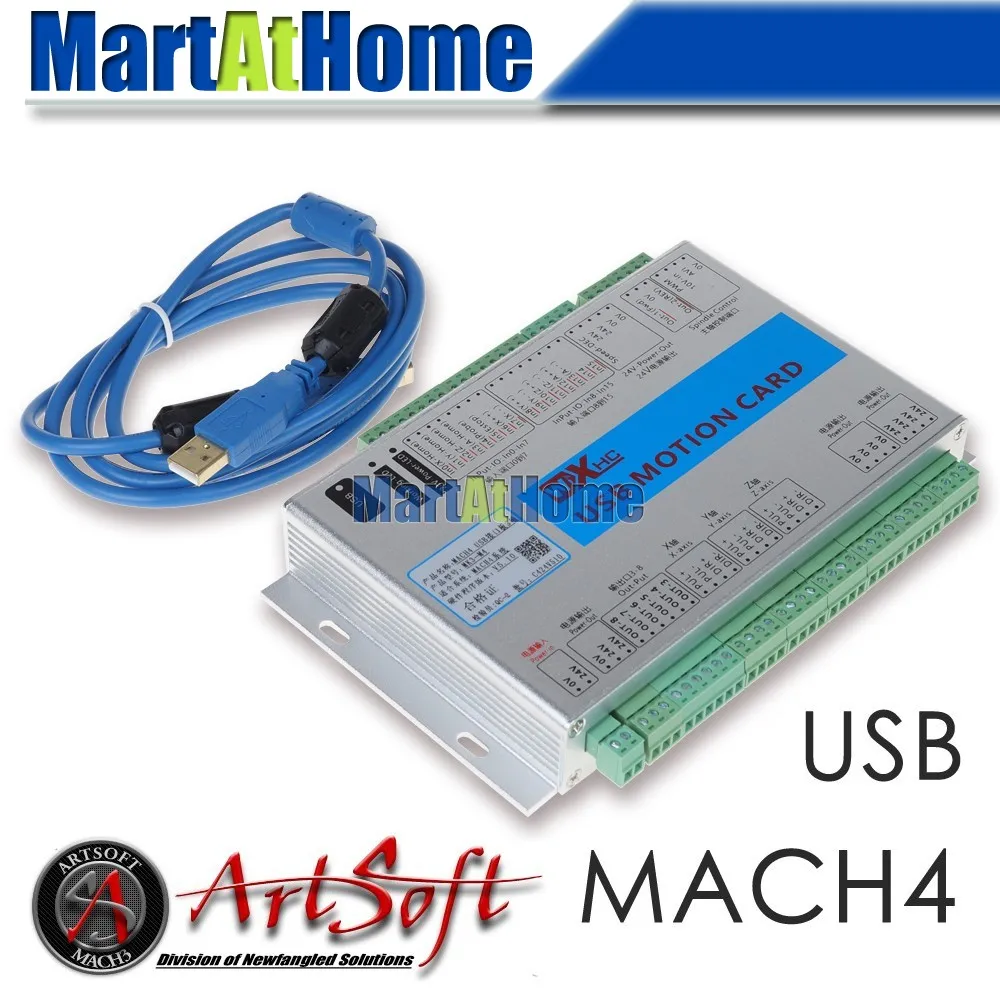

USB 2MHz Mach4 CNC 3 Axis Motion Control Card Breakout Board MK3-M4

for Machine Centre, CNC Engraving Machine

Note: we don\'t offer Mach4 software. If you need it, you could purchase through mach software\'s site as follow:

About Mach4 Software:

• Mach4 is completely new software with less than 1% of the programming code in common with Mach3. It was written from the ground up to be expandable, flexible, and extremely responsive for use with very large files.
• Mach3 was designed for simple hobby machines and still serves this purpose well. When quality, speed, and the ability to use or learn industrial style controls and methods are what is needed, Mach4 is the correct choice. While there was only one version of Mach3, Mach4 is offered in different versions.
• Mach4 has been in use on Industrial equipment running constantly for over a year. The standard Mach4 installer will control mills, drills, lathes, and routers. While we are controlling other machine types with our Industrial software, complete hobby solutions with integrated screens and functions have only been completed for these machine types.

I. Description:

This is the latest generation 3 axis Mach4 motion control card, which is the fourth generation calling MK3-M4. It could work under Mach4 software. The maximum step-pulse frequency is 2000 KHz. Now MK3-M4 is stronger, more stable and better performance than other version.

II. Package Contents:

1 x CNC Mach3 USB 3 Axis Motion Control Card

1 x USB Cable

1 x English Manual

1 x CD

III. Features:

1.Dual-Processors, ARM+FPGA, More processing power

2.Support all versions of Mach4.

3.Work under Windows 32-bit and 64-bit operating system (not including Mac OS)

4.Support spindle speed feedback function.

5.USB jack does not need to install the driver, plug and play under all versions of Windows.

6.Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach4 working state, USB cable unplugs and then plugs in, but also the normal connection.

7.Supports 3-axis linkage.

8.Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.

9.The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.

10.16 input IO, 8 output IO, Supports extended I / O control.

11.Onboard isolated power supply, not need external power supply.

12.All IO port fully isolated, strong anti-interference, stable performance.

13.Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.

14.Support XHC series of wireless electronic Mach4 MPG, such as WHB04B-4-M4 MPG.

15.With an aluminum shell, effectively shielding interference, stable and reliable performance.

IV. Application Connection Diagram:

V. Signal Description:

VI. Wiring Instruction:

VII. About Mach4 Software:

Mach4 is completely new software with less than 1% of the programming code in common with Mach3. It was written from the ground up to be expandable, flexible, and extremely responsive for use with very large files. Mach3 was designed for simple hobby machines and still serves this purpose well. When quality, speed, and the ability to use or learn industrial style controls and methods are what are needed, Mach4 is the correct choice. While there was only one version of Mach3, Mach4 is offered in different versions. Mach4 has been in use on Industrial equipment running constantly for over a year. The standard Mach4 installer will control mills, drills, lathes, and routers. While we are controlling other machine types with our Industrial software, complete hobby solutions with integrated screens and functions have only been completed for these machine types. Check back soon as more is coming.

Mach4 Recommended Requirements:

PREFERRED: 32 or 64-bit Laptop or Desktop – Using an External Motion Controller

• Windows 10, Windows 8, Windows 7 & Windows XP
• An appropriate external motion controller
• Mach4 Plugin for the selected Motion Controller
• 2Ghz CPU
• 1GB RAM
• Video Card with 256MB RAM(Large G-code files, especially 3D files will require a video card with 512MB RAM or higher)

*Use of Parallel Port for machine control only with desktop style computers with 32-bit versions of windows 7 and below.

32-bit Desktop – Parallel Port Recommended Requirements

• 32-bit version of Windows XP, Windows Vista, or Windows 7
• Mach4 Parallel Port Legacy Plugin (cost applicable)
• 2Ghz CPU
• 1GB RAM
• Non-integrated Video Card with 256MB RAM(Large G-code files, especially 3D files will require a video card with 512MB RAM or higher)
