The Best Seller Machine Product provide Cool Special DIY CNC 4th Rotary Axis F-type for CNC Router, CNC Engraving Machine #SM620 @SD. Now USD ~ USD /piece. Dont waste your time. Buy Now only in MartAtHome Store Trusted Seller Store!

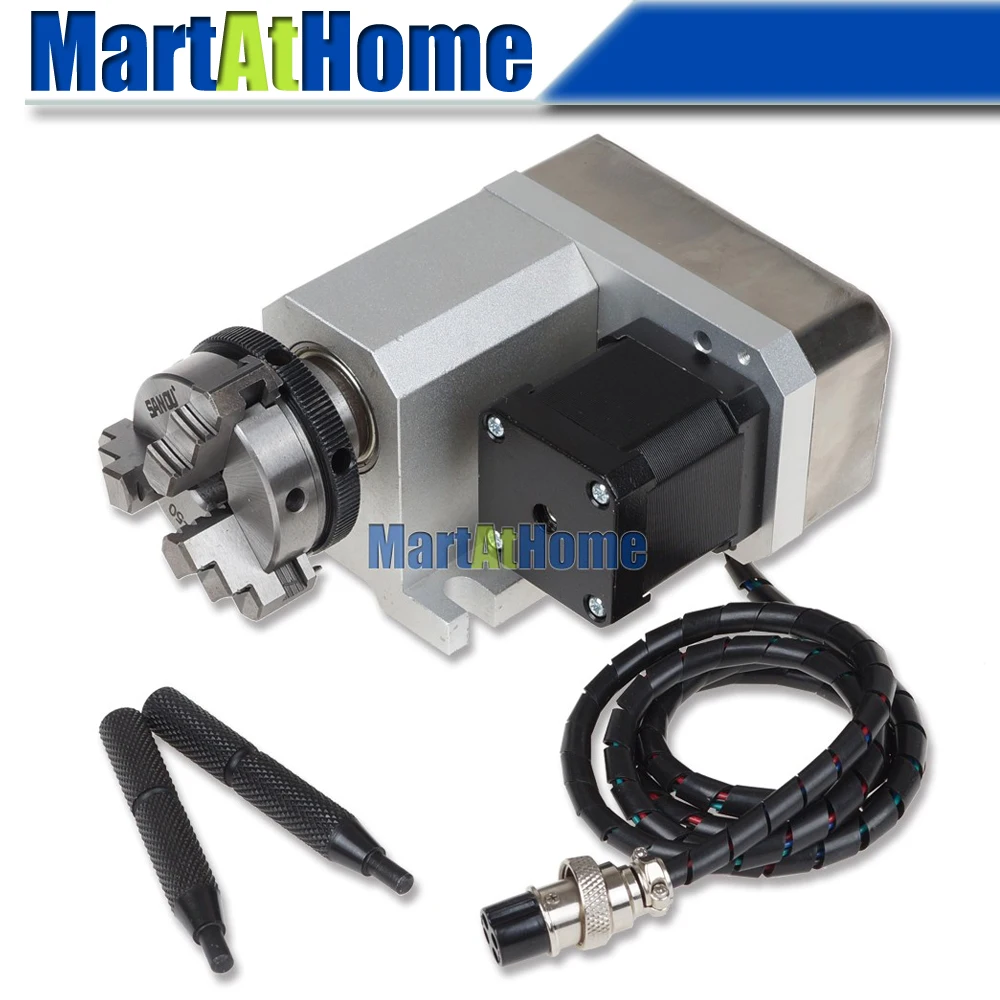

DIY CNC 4th Rotary Axis F-type for CNC Router, CNC Engraving Machine Package included: 1 x CNC 4th Rotary Axis F-type If you need CNC Tailstock Chuck 80mm, you can purchase from our store or contact me. Purchase Tailstock Chuck 80mm here: Parameters: 1. Dimensions (mm): 115 * 130 * 72 2. Diameter 50MM jaw self-centering card dribbling complete accessories 3. Chuck center height: 49MM 4. The transmission ratio of 1.3 (600 pulses / revolution) synchronization gear reducer 5. 42 * 48 thick 1.5A4 large torque 2-phase stepper motor 6. Stainless steel dust cover 7. Product gross weight 3KG 8. Processing load 10KG 9. Appearance anodized rust treatment 10. 4-pin aviation connector 1 = A +, 2 = A-, 3 = B +, 4 = B- MACH3 setup instructions: 1 degree required Pulse The formula is: 360 / subdivision stepping angle * Drive * Transmission ratio / 360 = MACH3 Pulse Electrical properties (ambient temperature Tj = 25 Celsius pm): | Input Power | 24V DC power supply |
| Output Current | Driver 2A |
| Drive mode | Bipolar constant current PWM drive output. |
| Drive motor | 42 * 48 stepper motors, two-phase 4-wire stepper motor) |
| Weight | About 3KG |
Details of the interface labeled diagram:
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Hot Gift DIY CNC 4th Rotary Axis F-type for CNC Router, CNC Engraving Machine #SM620 @SD
