Outline:

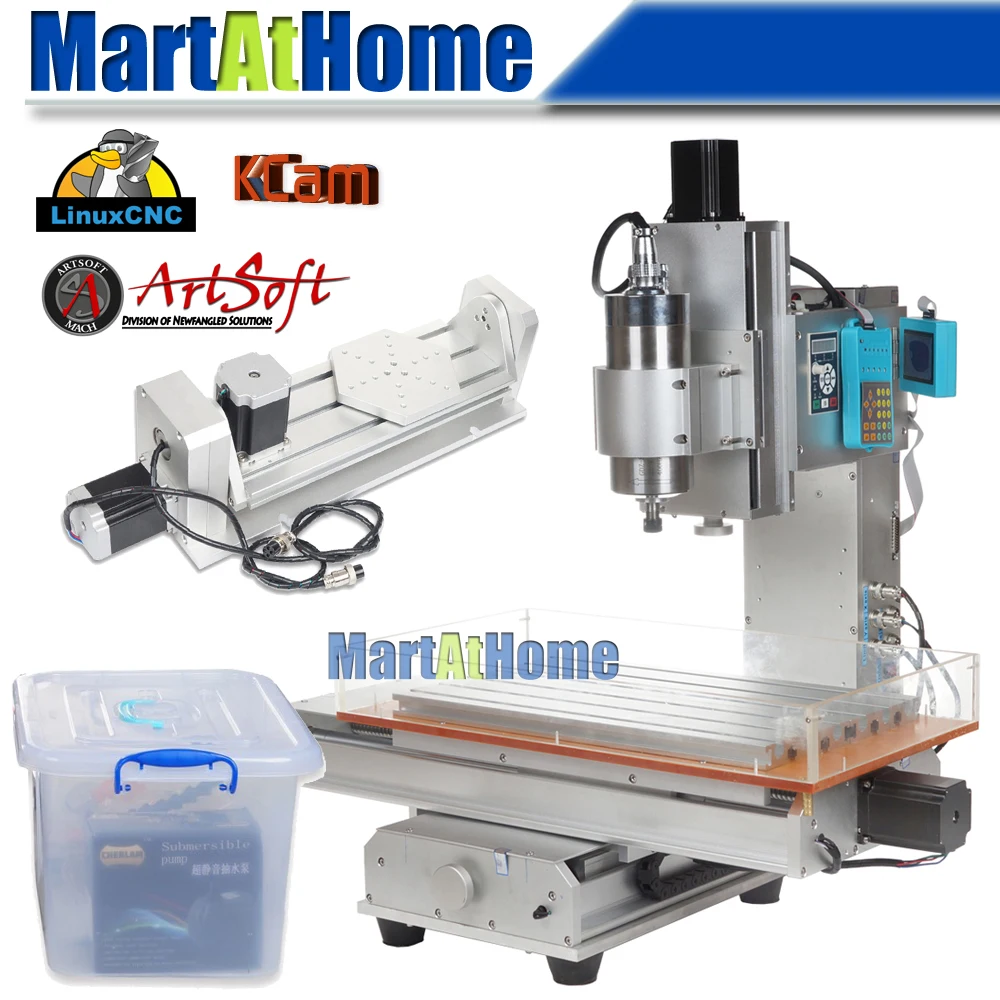

This 5 Axis CNC router has an 1.5KWW spindle motor and 1.5KW VFD. It can work for wood engraving, metal engraving well. It could work with Mach3, EMC2, KCAM4, LinuxCNC.

Package included:

• 1 x 5 Axis 3040 CNC Engraving Machine (We will ship as the follow package)
• 1 x Water-Cooled System
• 1 x CD (Manual, Mach3 with license)
• 1 x Tool Box

When you purchase, please let me know which voltage and power plug you need.
Power Input Voltage	220V AC	110V AC
Power Cable Plug	EU plug	US plug

Product parameters:

1. Product Dimensions height 715 * 699 * length width 610 (MM)

2. Effective stroke 300 * 400 * (150) (MM)

3.1605 precision ball screws

4. XY rail diameter 20 plus hard chrome shaft diameter 16 Z-axis rail and hard chrome shaft.

5. XYZ 4 axis stepper 57 * 78 250 OZ / IN (2.2N/CM)

6. Repeat positioning accuracy 0.01mm, precision 0.02MM

7. Processing speed 0-4000MM / minute, A-axis B-axis rotation speed of 0-180 rpm / min

8. X-axis table maximum load 50KG, 80 four axis chuck Maximum load 30KG;

50 Chuck four axis maximum load 15KG, five axis table maximum load 15KG.

9. Stainless steel tailgate

10. Integrated 24V 350W Switching Power Supply

11. 1500 W water-cooled frequency spindle Industry (ER11-A Collet nut)

12. 1500 W Industrial spindle drive

13. 4 Axis professional driver boards, with LCD digital display and handle, offline programming and path manually duplicate records offline processing

14. 4^th and 5^th axis motor is 57 * 56 stepper motor, the transmission ratio is 1:6

H-type 4th & 5th Rotary Axis:

Features:

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control

2. The computer keeps track of the path; you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3. Manually move the processing to save recorded track record manually move the machine data and automatically reprocessed run manually move the path.

4. Manual data input processing path and enter the path to run automatically

5. You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control

6. Max 5A stepper motor drive current, eight-speed adjustable.

7. Up to 16 segments, higher accuracy, run more smoothly.

8. Overload over-current over-temperature protection function, automatic semi-flow control; fully protect your computer and peripherals

9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10. closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.

Electrical properties (ambient temperature Tj = 25 Celsius)

Input Power	110/220V AC power supply (Please let me know which one you need)
Output Current	Drive 4.5A (peak 5A)
Driven approach	Bipolar constant current PWM drive output.
Drive motor	57 * 78 stepper motors, 2-phase 4 wire stepper motor)
Weight	About 98KG

Microstep resolution table.

Signal waveform and timing

Power output interface functions

Breakdown of the interface labeled

Operating Instructions.
